ESC4000 G2
Hybrid Computing with scalable expansion capability

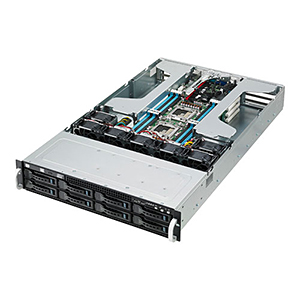

ASUS ESC4000 G2 is the latest high-density GPU server based on dual Intel Xeon E5-2600 processor platform, featuring eight hot-swap 3.5” SATA HDD cages, 1+1 80+ Platinum 1620W redundant power supply and nine PCI-E Gen3 x16 expansion slots. It delivers high density computing power, scalable expansion capability, intelligent thermal solution and green design, making it an ideal choice for applications in the HPC field of life and medical science, engineering science, financial modeling and virtualization.

Features:

8+1 Flexible Expansion Slots

The ESC4000 supports up to eight PCI-E Gen3 x16 slots for high expandability, compatible with versatile expansion cards. In addition, there is an optional riser for a low profile/half-length card and PIKE solution.

Intelligent System Fan Control II Function

To improve heat-dispersion and a stable computing environment, independent smart fans provide cooling for each area of the GPU and CPU, and a dual-fan design for GPU cards provides an extra thermal back-up solution.

1+1 Redundant PSU (1620W 80+ Platinum)

The ESC4000 is equipped with a 1620W 80+ Platinum level redundant power supply with power efficiency up to 94% for energy savings, while the hot swappable design reduces power loss, improves power efficiency and saves more TCO for users.

Comprehensive RAID Solutions

The ESC4000 supports the optional ASUS RAID PIKE upgrade kit. With only a PIKE riser card and a PIKE card, upgrade the server from a SATA to SAS based storage system by re-connecting the cable from the onboard SATA to a PIKE riser SAS port. Users now have flexible choices for multiple storage options!

Complete Server Remote Management Solution

By installing an optional Web GUI ASMB6-iKVM module, users can have full control of the server with an out-of-band server-based management (IPMI 2.0 standard) and 24x7 real-time remote monitor. Meanwhile, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, remote control, power control and asset management through a user-friendly interface. Users can utilize an effective tool with a user-friendly interface to control the servers remotely.

Cutting-edge Architecture

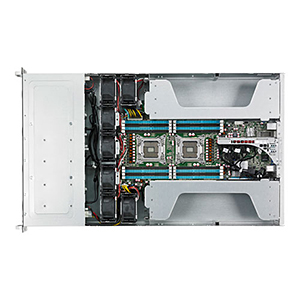

The ESC4000 G2 supports dual CPUs from the Intel® Xeon® E5-2600 processor family and with 16 DIMM sockets onboard, up to 512GB of four-channel DDR3 1600/1333 memory is supported. Combined, they provide for a high computing capability that can tackle the most difficult of tasks. Additionally, there are more PCI-E lanes with PCI-E Gen 3 support, which is suitable for systems that require high I/O connectivity and bandwidth and supports more PCI-E devices.

Note: For full specifications see server platforms details.

Customize it for your needs

We offer an extensive selection of computer components through the convenient system configurators allowing to build broad spectrum of custom server systems up to the highly redundant and high-performance solutions. Starting configurations of our server systems include server platform (or separate server chassis and motherboard), CPU, memory, hard drive and in some cases optical and floppy drives. By using the configurator located in this page you can upgrade and downgrade components to fit this purchase into your budget and requirements. Besides the configurator, you can also add other components to your cart and we will install them as well. Our custom server systems come assembled and tested with warranty.
