    Home : Servers : Socket 1567 Xeon Servers : Pedestal and Tower Xeon Servers Socket 1567 :

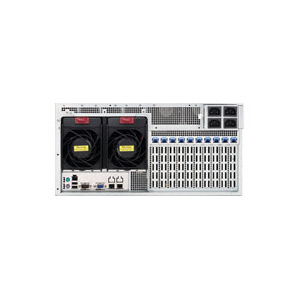

    5U Rack Server Supermicro SuperServer 5086B-TRF Westmere-EX 8-Way Xeon® SAS/SATA Series Server System

    Supermicro SuperServer 5086B-TRF Westmere-EX 8-Way Xeon® SAS/SATA Series Server System
    Item Code: SRM-SMR-5086BTRF
    The current 5u rack server configuration is priced at:
    Price shown will be adjusted in the checkout with respect to shipping and taxes (where required)
    Use custom 5u rack server build configurator at the bottom of this page to upgrade or downgrade components to fit specifications into your budget and requirements.
    Note: The picture shown is for information purposes only. Visual appearance of the product depends on selected configuration and may vary from the picture.

    5U Rack Server Info


    Please add up to 14 hard drives to your shopping cart:

    SATA Hard Drives or

    SATA Solid State Drives or

    SAS Hard Drives

    Designed to be world's highest density 5U 8-way server with super-high computing performance, the multi-processor SuperServer 5086 series support the QPI format 8-Core Xeon® processors 7500 Series and 10-Core Xeon® processcors E7-8800 family in a high-density 5U form-factor. The 5086 SuperServers are ideal for Mission Critical Applications, High Performance In-Memory Database, Business Intelligence/Continuity, ERP, CRM, Virtualization, CAD, EDA tools, 3D Applications.

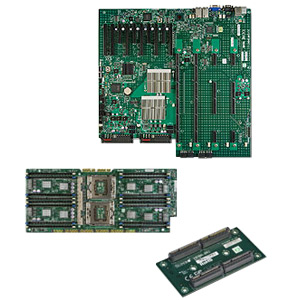

    The X8OBN-F platform consists of the X8OBN Baseboard, the X8OBN-CPU CPU Board, and the X8OBN-BR1 Bridge Card. Each X8OBN-CPU Board supports up to two Intel 7500 series processors and 16 DDR3 1066MHz memory modules. The Intel 7500 series processors offer Intel QuickPath Interconnect (QPI) Technology, providing point-to-point system interface that replaces Front Side Bus technology. The X8OBN-BR Bridge card provides connections between a pair of the CPU boards installed on the X8OBN Baseboard. With support of Intel Turbo Boost Technology and up to 80 CPU cores, the X8OBN-F platform offers substantial enhancement in system performance for 4-way and 8-way servers.

    Key Features:

    1. Highest Density 5U 8-Way Server;
      Super-High Computing Performance
    2. 8x Intel® Xeon® 8-core 7500*
      series and 10-core E7-8800 family
      processors supported
    3. 64x DIMM slots (32GB DDR3) support
      up to 2TB Reg. ECC SDRAM**
    4. 4x PCI-E 2.0 x16 + 2x PCI-E 2.0 x8
      (in x16 slot) or 10x PCI-E 2.0 x8
      full-height full-length slots
    5. Dual Gigabit Ethernet LAN ports
    6. 16x 2.5" HDDs and 2x 5.25" devices;
      up to 24x 2.5" HDDs with optional
      HDD module***
    7. 6x SATA2 ports onboard
    8. Onboard BMC supports IPMI 2.0 +
      KVM with dedicated LAN
    9. 6x 9cm Hot-swap cooling fans
    10. 2800W hot-swap (2+2) redundant
      high-efficiency power supplies
      Gold Level Certified

    Note: For full specifications see server platforms details.

    Customize it for your needs

    We offer an extensive selection of computer components through the convenient system configurators allowing to build broad spectrum of custom server systems up to the highly redundant and high-performance solutions. Starting configurations of our server systems include server platform (or separate server chassis and motherboard), CPU, memory, hard drive and in some cases optical and floppy drives. By using the configurator located in this page you can upgrade and downgrade components to fit this purchase into your budget and requirements. Besides the configurator, you can also add other components to your cart and we will install them as well. Our custom server systems come assembled and tested with warranty.


    Build Your Own 5U Rack Server

    click for more info Socket 1567 4U Rack and Pedestal Server Platforms:
  • SUPERMICRO, 5086B-TRF Black 5U Rack Server Platform, LGA1567 /8, Intel® 7500 /2, DDR3-1333 2TB ECC /64, PCIe x16 /4, SATA RAID 5 HS /6, VGA, GbLAN /2, IPMI, 2800W (2+2) Rdt PSU
  • click for more info Socket 1567 Xeon 7500 Series Server Processors:
    click for more info Thermal Compound:
    click for more info DDR3-1600 ECC Registered DIMM Memory:
    click for more info PCI Express x16 Video Cards:
    click for more info HPC Processor Units:
    click for more info SATA Notebook Hard Drives:
    click for more info Storage Drives:
    click for more info SATA RAID Controllers:
    click for more info Storage Subsystem Configuration:
    click for more info Blu-Ray and DVD-ROM Reader Drives:
    click for more info DVD Burner Drives:
    click for more info Blu-ray Disc Combo Drives:
    click for more info Blu-ray Disc Burner Drives:
    click for more info Floppy Drives and Card Readers:
    click for more info Network Cards:
    click for more info Rack Mount Kits and Accesories:
    click for more info Tape Backup Drives:
    click for more info LCD Monitors:
    click for more info Keyboards:
    click for more info Mouse:
    click for more info UPS Systems:
    click for more info Surge Protectors and Power Strips:
    click for more info Operating Systems:
    click for more info Software Licences:
    click for more info Database Software:
    click for more info Virtualization Software:
    click for more info Productivity Software:
    click for more info Antivirus Software:
    click for more info Warranties:

    The current configuration is priced at:
    Price shown will be adjusted in the checkout with respect to shipping and taxes (where required)

    PLEASE NOTE: Configuration and pricing information of the 5u rack server build above is estimated and presented for your reference only. All pricing and shipping information is subject to change without notice. Final order detailed information and total amount, including tax and shipping, will be provided upon completion of your online order. AVADirect Custom Computers is not responsible for typographical or other errors or omissions regarding prices or other information. Products displayed are available to US customers who take delivery in the 50 United States. All sales are subject to AVADirect Terms of Sale.
