R5 Socket 2011 Active 2U CPU Cooler, 8000 RPM, 52.8 dBA, 160W TDP, Copper/Aluminum

Quantity:
  • SKU: 7343494
  • Manufacturer: DYNATRON
  • MPN: R5
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$37.94
Quantity:

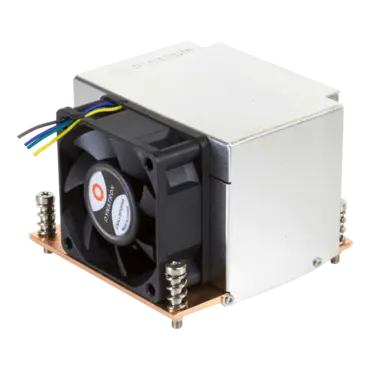

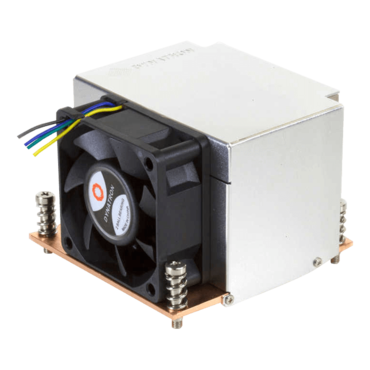

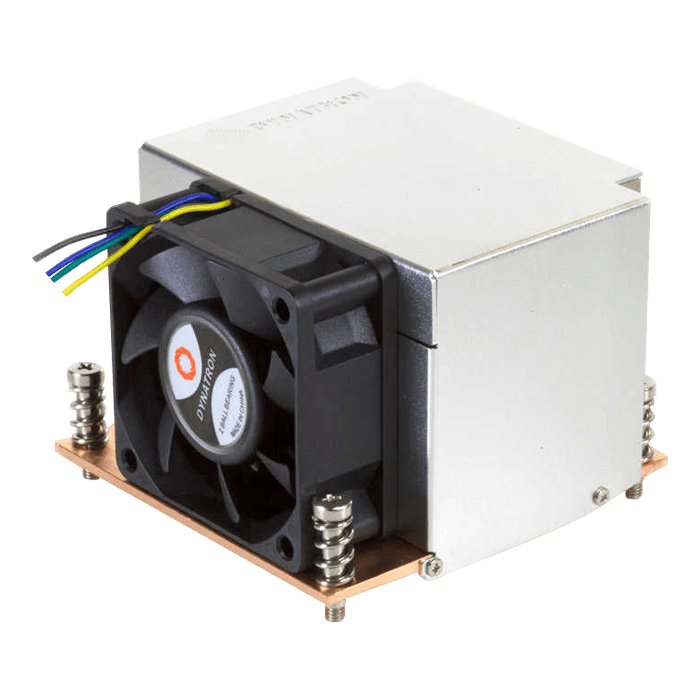

R5 Socket 2011 Active 2U CPU Cooler, 8000 RPM, 52.8 dBA, 160W TDP, Copper/Aluminum

Dynatron R5 is designed for Intel® Sandy Bridge Socket 2011 2U Server solution. The R5 CPU Cooler has square type, 80 x 80mm mounting pitch and can support server processors up to 160W TDP.

  • Intelligent H.C.C.
  • 150 Watts Cooling Solution
  • 6mm Heatpipe
  • Energy-Saving PWM
  • RoHS
CPU Socket 2011 & 2011-R (Square Type, 80 x 80mm mounting pitch)
CPU Support Intel® Sandy Bridge EP/EX Processors & Haswell processors up to 160 Watts
Solution 2U&Up Server
Overall Dimension 91.5 x 91.5 x 66.0 mm
Weight 590 g
Material H.C.C.(Heatpipes Contact CPU) Copper Base & Aluminum Fins with Heatpipes embedded
Fan Dimension 60 x 60 x 25 mm
Speed At Duty Cycle 0~20%: 170 RPM
At Duty Cycle 50%: 4000 RPM
At Duty Cycle 100%: 8500 RPM
Bearing 2 Ball Bearing
Rated Voltage 12 V
Power At Duty Cycle 0~20%: 0.60 W
At Duty Cycle 50%: 1.8 W
At Duty Cycle 100%: 7.2 W
Air Flow At Duty Cycle 0~20%: 8.85 CFM
At Duty Cycle 50%: 21.97 CFM
At Duty Cycle 100%: 46.44 CFM
Noise Level At Duty Cycle 0~20%: 21.8 dBA
At Duty Cycle 50%: 34.50 dBA
At Duty Cycle 100%: 52.8 dBA
Air Pressure At Duty Cycle 0~20%: 0.875 mm-H2O
At Duty Cycle 50%: 4.472 mm-H2O
At Duty Cycle 100%: 19.190 mm-H2O
Lead Wire Pin Out Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Tachometer/Signal output)
Pin4-Blue (PWM)
Note 1. Thermal Grease Pre-Printed with Shin-Etsu G751
2. RoHS Compliance
