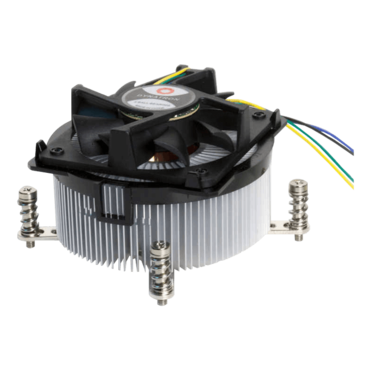

R9 Socket 2011 Active 2U CPU Cooler, 4500 RPM, 95W TDP, 62mm Height, Aluminum/Copper

Quantity:
  • SKU: 7790774
  • Manufacturer: DYNATRON
  • MPN: R9
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$24.15
Quantity:
R9 Socket 2011 Active 2U CPU Cooler, 4500 RPM, 95W TDP, 62mm Height, Aluminum/Copper
Dynatron R9 is designed for Intel® Sandy Bridge Socket 2011 2U Server solution.
  • Copper Insert
  • Screw Type
  • Energy-Saving PWM
  • RoHS
CPU Socket 2011 (Square Type, 80 x 80mm mounting pitch)
CPU Support Intel® Sandy Bridge EP/EX Processors
Solution 2U&Up Server
Overall Dimension 90.0 x 90.0 x 62.0  mm
Weight 490 g
Material Aluminum Extruded Radial Fin Heatsink with Copper Inserted
Fan Dimension 77 x 77 x 20 mm
Speed At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 2500 RPM
At Duty Cycle 100%: 4500 RPM
Bearing 2 Ball Bearing
Rated Voltage 12 V
Power At Duty Cycle 20%: 0.84 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 6.0 W
Air Flow At Duty Cycle 20%: 10.12 CFM
At Duty Cycle 50%: 25.30 CFM
At Duty Cycle 100%: 45.56 CFM
Noise Level At Duty Cycle 20%: 13.14 dBA
At Duty Cycle 50%: 33.04 dBA
At Duty Cycle 100%: 45.9 dBA
Air Pressure At Duty Cycle 20%: 0.185 mm-H2O
At Duty Cycle 50%: 1.156 mm-H2O
At Duty Cycle 100%: 3.746 mm-H2O
Lead Wire Pin Out Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Note 1. Support CPU Power up to 95 Watts
2. Thermal Grease Pre-Printed.
3. RoHS Compliance
4. Backplate / Back Strips is not included.
