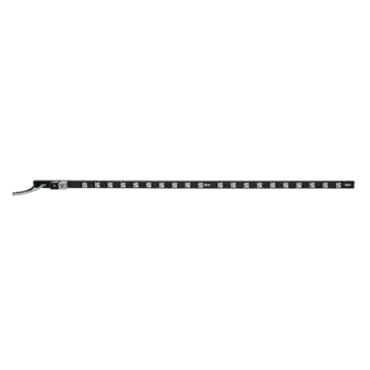

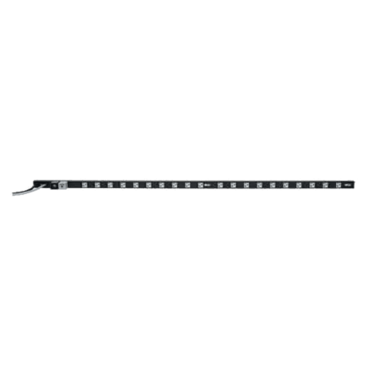

Single-Phase Dual Circuit Power Distribution Unit, 40x / NEMA 5-15/20R, 120V AC, 50/60Hz, 20A, 10-ft cord, Black

SKU: 44864

Manufacturer: TRIPP LITE

MPN: PDU40TDUAL

Price: $189.94

Availability: In stock

PRODUCT DESCRIPTION

The PDU40TDUAL 3.8kW Single-Phase Dual-Circuit 120V Basic PDU works as two independent PDUs in a single housing, perfect for networking, telecom, security, audio/video and sound reinforcement applications. Ideal for high-density network equipment with dual redundant input cables, it features 40 NEMA 5-15/20R outlets split evenly into two separate power circuits.

Each power circuit, including its input plug, power cord, breaker and outlets, is color-coded black or gray for easy identification. Both 10-foot power cords feature NEMA L5-20P input plugs and come with optional adapters to convert them to NEMA 5-20P plugs, which are not color-coded. Connect the plugs to separate mains input power sources, generators or protected UPS systems to distribute AC power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The 70-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.

Dual Single-Phase PDUs in a Single Housing

  • Ideal for high-density network equipment with dual redundant input cables
  • 40 NEMA 5-15/20R outlets in 2 breakered power circuits
  • 70 in. all-metal housing


Dual Input Connectors

  • NEMA L5-20P input plugs with 10 ft. cords
  • Included adapters convert plugs to NEMA 5-20P, if desired
  • Plugs connect to separate external AC power sources


Dual Independent Power Circuits

  • Circuits include input plug, power cord, circuit breaker and outlets
  • Color-coded black or gray for easy identification
  • 20A circuit breakers protect outlets against overloads


Switchless Design

  • Prevents accidental shutdowns and costly downtime


Versatile Installation Options

  • Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
  • Also mounts on wall, workbench or under a counter with user-supplied hardware

Package Includes

  • PDU40TDUAL 3.8kW Single-Phase Dual-Circuit 120V Basic PDU
  • (2) NEMA L5-20P to NEMA 5-20P Plug Set Adapters
  • Mounting Hardware
  • Owner’s Manual
OVERVIEW
PDU Type Basic
OUTPUT
Output Capacity Details 3.8kW total - 1.9kW per circuit (120V); 4.0kW total - 2.0kW per circuit (127V); 3.2kW total - 1.6kW per circuit (100V input); 40A maximum total - 20A maximum per circuit (Agency de-rated to 32A continuous total - 16A per circuit)
Frequency Compatibility 50 / 60 Hz
Output Receptacles (40) 5-15/20R
Output Receptacle Details 20 grey-color outlets are powered via the grey-color input cable; 20 black-color outlets are powered via the black-color input cable
Output Nominal Voltage 100; 120; 127
Overload Protection 2 x 20A circuit breakers; Grey-color circuit breaker protects grey-color outlets; Black-color circuit breaker protects black-color outlets
INPUT
PDU Input Voltage 100; 120; 127
Recommended Electrical Service Two 20A 120V circuits
Maximum Input Amps 40
Maximum Input Amps Details 20A maximum per circuit (Agency de-rated to 16A per circuit continuous)
PDU Plug Type NEMA 5-20P; NEMA L5-20P
Input Cord Details Set of two input power cords; Grey-color input cord powers grey-color outlets; Black-color input cord powers black-color outlets
Input Cord Length (ft.) 10
Input Phase Single-Phase
USER INTERFACE, ALERTS & CONTROLS
Switches n/a
PHYSICAL
Shipping Dimensions (hwd / in.) 5 x 2.25 x 71.25
Shipping Weight (lbs.) 10
Unit Dimensions (hwd / in.) 70 x 1.5 x 3
Unit Weight (lbs.) 9
Material of Construction Metal
Form Factors Supported Zero U vertical rackmount, wallmount, raceway, workbench and more
PDU Form Factor Vertical (0U)
ENVIRONMENTAL
Storage Temperature Range 5 to 122F (-15 to 50C)
Relative Humidity 5 to 95% non-condensing
Operating Elevation (ft.) 0-10,000
CERTIFICATIONS
Certifications Tested to UL60950-1 (USA), CSA (Canada), RoHS compliant
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
