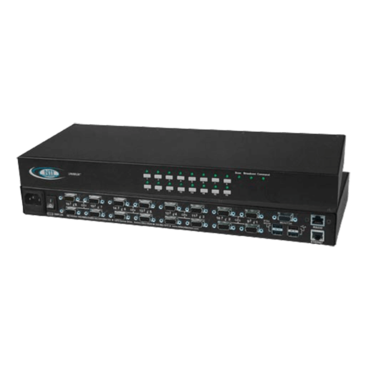

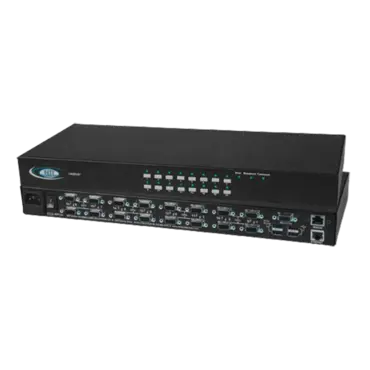

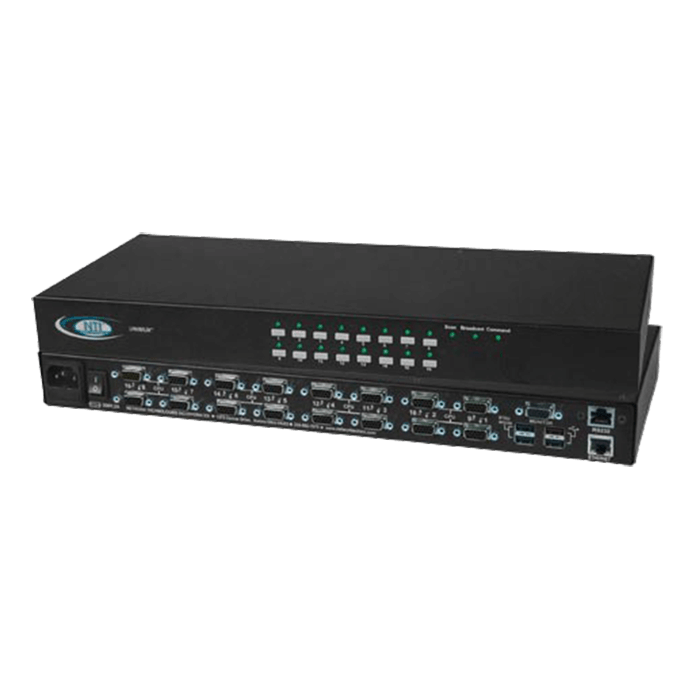

UNIMUX High Density VGA USB KVM Switch with Optional Additional Transparent USB Connectors

Quantity:
  • SKU: 10684108
  • Manufacturer: NTI
  • MPN: UNIMUX-USBV-16HDUT
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,753.40
Quantity:
UNIMUX High Density VGA USB KVM Switch with Optional Additional Transparent USB Connectors

Control up to 32 USB computers with one USB keyboard, USB mouse & VGA monitor
Also known as: Industrial VGA USB KVM Switch, UNIMUX VGA USB KVM Switch, usb switch, universal serial bus kvm switcher.

The UNIMUX™ High Density VGA USB KVM Switch allows a user to control up to 32 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

  • The High Density Switch saves rack space
    • 4-, 8- and 16-port switches are 1RU in height.
    • 32-port switch is 2RU in height.
    • Rackmount kit included.
  • Features NTI's patented true autoboot USB switching – all attached computers can be booted simultaneously.
  • Compatible with USB computers (PC, SUN and MAC).
  • Crisp and clear 1920x1200 (WUXGA) video resolution.
  • Equipped with OSD, RS232, and Ethernet.
  • High quality steel construction.
  • Flash upgradeable.
  • Cabling runs are simplified with NTI's high density KVM switch cables.
  • Available options:
    • Two transparent USB ports
      • Supports any two USB 1.1 (low/full speed) devices, in addition to keyboard and mouse, such as a touch screen monitor, interactive white board, or CAC card reader.
    • USB only switches – no VGA video.
NTI Part # Hours NTI Part # Hours
UNIMUX-USBV-4HD 211,477 UNIMUX-USBV-16HD 133,913
UNIMUX-USBV-8HD 196,238 UNIMUX-USBV-32HD 87,413

Hosts
  • Female 15-pin HD connectors.
  • Supports USB computers with VGA video.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R.
Monitor
  • Crisp and clear 1920x1200 resolution.
  • One female 15-pin HD connector.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Available power cord lengths: 1/1.5/3/6 feet
Dimensions
  • 4-, 8- and 16-port switches WxDxH (in):
    • 16.66x7.58x1.75 (without supplied rackmount kit)
    • 19x7.58x1.75 (with supplied rackmount kit)
  • 32-port switches WxDxH: 19x10.17x3.5 in (483x258x89 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Devices
  • Two female USB Type A connectors for keyboard and mouse.
    • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard/mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and IKEY combo keyboard/touchpad.
    • Keyboard and mouse are hot-pluggable.
  • UNIMUX-USBV-xHDUT: two additional transparent female USB Type A connectors for USB 1.1 (low/full speed) devices - USB touch screen monitor, CAC card reader, interactive whiteboard, barcode scanner, etc.
    • Connect any type of USB device - fully transparent USB connectors.
    • Switch USB 1.1 devices between connected computers.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
