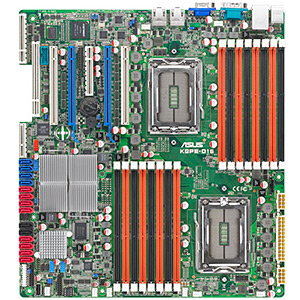

KGPE-D16
G34 Mainstream Solution for Performance & Power Efficiency
The ASUS KGPE-D16 server motherboard delivers significant computing capability with 16DIMM slots and high expandability with 6 expansion slots to cater to the most intensive and demanding tasks.
Features:
Support Up-To-Date AMD 12 Core CPU KGPE-D16 is based on latest AMD G34 chipset architecture to support 45nm Opteron™ 6000 series processors. The platform is designed for highly threaded application, delivering 12-core/ 8-core multi-core performance, quad HT3 links with up to 6.4GT/S interconnect rate per link, and 12 MB shared L3 cache.
Standard EEB with 16 DIMMs & Industrial Standard Riser Card Slot (Slot 6) KGPE-D16 is designed in EEB (12” x 13”) form factor, with 16 DDR3 1333 memory DIMMs to support up to 256GB (RDIMM). By supporting industrial standard PCI-E x16 (Gen2 x16 link) Full Height & Full Length Card in 1U, this board offers you highest memory capacity without source for proprietary chassis & riser solution.
Dual Use for Server (rack ready) & Workstation The ASUS Flex-E technology provides the flexibility to auto-switch between 2 true PCI-E x16 Link (support 2 double deck graphic cards) or 1 PCI-E x16 Link & 2 PCI-E x8 Link (for I/O expansion). Moreover, the boards supports ASUS MIO audio card, which offers enhanced signal-to-noise ratio in a 7.1 surround channel setup to deliver exhilarating surround sound for professional usage.
High Quality Components for Greater System Reliability & 85% Power Efficiency ASUS is the first company to phase in 6-Phase CPU power, 3-Phase memory power and All Ultra Long Life Solid capacitors on serverboard in the market. These features not only provide the support for high-end 140W CPU, but also deliver highly efficient and reliable operations.
ASUS PIKE SAS2 6G Storage Supported
KGPE-D16 supports ASUS PIKE (Proprietary I/O Kit Expansion) 2008/IMR for RIAD 0, 1, 10, and 5; and PIKE 2008 for RAID 0, 1, 10 and 1E. The design of ASUS PIKE brings 2 key advantages:
- Provide flexible SAS storage add-on card selection.
- Board edge design: locate PIKE expansion at the edge of the board for full height card support when PIKE is installed.
Optional ASMB4-iKVM for Remote Management The optional ASMB4-iKVM provides remote real-time full control access to the system based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime.
Specifications:
| Processor / System Bus |
2 x Socket G34 compatible
AMD Opteron™ 6100 series
AMD Opteron™ 6200 series
AMD Opteron™ 6300 series
HyperTransport™ Technology 3.0
6.4 GT/s per link (triple link)
*Please refer to overview for details
|
| Core Logic |
AMD SR5690
AMD SP5100
|
| Form Factor |
SSI EEB 3.61
12" x 13" |
| ASUS Features |
Rack Ready (Rack and Pedestal dual use)
ASWM2.0
FAN speed control
|
| Memory |
Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 256GB RDIMM/Maximum up to 64GB UDIMM
Memory Type :
DDR3, 1600/1333/1066/800, UDIMM*
DDR3, 1600/1333/1066/800, RDIMM*
Memory Size :
1GB, 2GB, 3GB, 4GB, 8GB, 16GB RDIMM
1GB, 2GB, 4GB UDIMM |
| Expansion Slots (follow SSI Location #) |
Total PCI/PCI-X/PCI-E Slots: 6
Slot Location 1: 1 * PCI 32bit/33 MHz
Slot Location 2: 1 * PCI-E x16 (Gen2 X8 Link)
Slot Location 3: 1 * PCI-E x16 (Gen2 X16 Link) (Auto switch to x8 Link if slot 2 is occupied)
Slot Location 4: 1 * PCI-E x8 (Gen2 X4 Link)
Slot Location 5: 1 * PCI-E x16 (Gen2 X 16 Link)
Slot Location 6: 1 * PCI-E x16 (Gen2 x16 Link for 1U FH/FL Card) (Auto turn off if slot 5 is occupied, MIO supported)
Additional Slot 1: 1* PIKE Slot for Stroage expansion
|
| Storage |
SATA Controller:
AMD SP5100:
6 SATA2 300MB/s ports
SAS Controller:
Optional:
ASUS PIKE 1064E 4-port SAS RAID card
ASUS PIKE 1068E 8-port SAS RAID card
ASUS PIKE 1078 8-port SAS HW RAID card
ASUS PIKE 6480 8-port SAS RAID card
ASUS PIKE 2008 8-port SAS2 6G RAID card |
| Networking |
LAN: 2 * Intel 82574L + 1 * Mgmt LAN |
| Graphic |
VGA: Aspeed AST2050 8MB |
| Onboard I/O Connectors |
1 x PSU Connector 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector
1 x Management Connector Onboard socket for optional management card
1 x USB Connectors (support 7 USB port) (One for internal Type A USB connector)
8 x Fan Header 4pin
2 x SMBus
1 x Chassis Intruder
1 x Serial Port Header
1 x 1394 header |
| Rear I/O Connectors |
1 x External Serial Port
2 x External USB Port
1 x VGA Port
2 x RJ-45
1 x PS/2 KB/Mouse
|
| Management Solution |
Software: ASWM2.0
Out of Band Remote Management: Optional ASMB4-iKVM for KVM-over-Internet |
| Monitoring |
CPU Temperature
FAN RPM |
| EMI |
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
|
| Environment |
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Non operation humidity: 20% ~ 90% (Non condensing) |
| Accessories |
Standard Gift Box Pack (3pcs per Carton):
6 x SATA Data Cables
1 x I/O Shield
1 x ASUS Mainboard Support CD
1 x User's Guide
2 x Thermal sensor cable
Standard Bulk Pack (10pcs per Carton):
1 x I/O Shield
1 x ASUS Mainboard Support CD
1 x User's Guide |
| Product SKUs |
Standard Gift Box Pack
Standard Bulk Pack
|
| Note |
*Refer to ASUS Server AVL for latest update |
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
|
