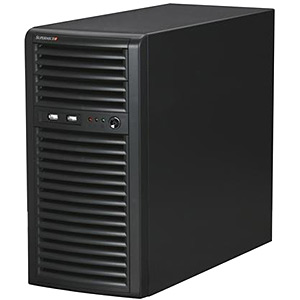

Key Features: Intel® Xeon® X3400 / L3400 series processors Up to 32GB DDR3 1333/1066/800MHz ECC Registered DIMM / 16GB Unbuffered DIMM 2 (x8) PCI-E 2.0, 1 (x4) PCI-E (in x8) 1x 32-bit 33MHz PCI slot Dual Intel® 82574L Gigabit Ethernet Controllers 2x 5.25" external drive bays, 4x 3.5" internal drive bays 300W High-Efficiency, Low-noise Power Supply Specifications: Product SKUs SYS-5036I-IF SuperServer 5036I-I (Black) Motherboard Super X8SIL Processor/Cache CPU LGA 1156 Socket Intel® Xeon® X3400 series Intel® Xeon® L3400 series Intel® Core™ i3 Intel® Pentium® G6950 Intel® Celeron® G1101 System Memory Memory Capacity 4x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) 1333 / 1066 / 800 MHz Dual Core processors of Ci3 and Pentium: support ECC UDIMM only Note: Supports 1-Gb and 2-Gb x8 devices only - Intel 3420 / 3400 Chipset Memory Requirements Memory Type 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 1GB, 2GB, 4GB, 8GB Memory Voltage 1.5 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® 3400 chipset SATA 4x SATA (3 Gbps) Network Controllers 2x Intel® 82574L Gigabit Ethernet Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output VGA Matrox G200eW 16MB DDR2 Super I/O Winbond 83627DHG-P Clock Generator CK505 Expansion Slots PCI-Express 2 (x8) PCI-E 2.0 slot 1 (x4) PCI-E (using x8 slot) PCI 1 32-bit PCI slot Input / Output Serial ATA 4 SATA hard drives supported LAN 2x RJ45 LAN ports USB 2x USB rear ports 1x USB on-board 2x USB internal header (4 ports) Total 5 USB 2.0 Compliant VGA 1x VGA port Keyboard / Mouse PS/2 keyboard and mouse ports Serial Port / Header 1x Fast UART 16550 serial port 1x internal header System BIOS BIOS Type 32Mb SPI Flash EEPROM with AMI BIOS BIOS Features DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 Chassis Form Factor Mid-Tower Model CSE-731i-300B Physical Features Height 14.25" (362 mm) Width 7.25" (184 mm) Depth 16.75" (425 mm) Weight 17.4 lbs (7.9 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED Network activity LED System Overheat LED Ports 2x Front side USB ports (USB 2.0 ready) Drive Bays Internal 4x 3.5" tool-less HDD trays External 2x 5.25" external drive bays 1x 3.5" external drive bay (OEM option)   System Cooling Fans 1x 9cm (rear) PWM fan w/ tool-less design 1x 8cm (front) cooling fan (optional) Power Supply 300W AC power supply w/ PFC AC Voltage 100 - 240V, 50-60Hz, 5 Amp DC Output 5V + 12V + 3.3V - 12V < 290W +5V 19 Amp +5V standby 2.0 Amp +12V 11 Amp + 11.5 Amp -12V 0.15 Amp +3.3V 16.0 Amp Certification   80 PLUS Bronze Certified PC Health Monitoring CPU Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V FAN Total of 5 fan headers supporting up to 5 fans Five 4-pin fan headers 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI LED CPU / System Overheat LED +5V Standby alert LED Other Features Chassis intrusion detection Chassis intrusion header Included Parts List:   Part Number Qty Description Motherboard / Chassis MBD-X8SIL CSE-731i-300B 1 1 Super X8SIL Motherboard Mid-Tower Chassis Cable 1 CBL-0044L 4 SATA CABLE 61CM FLAT S-S PBF CD CDR-X8-UP 1 DRIVER CD FOR X8 UP MOTHERBOARD Power Supply PWS-303-PQ 1 300W ATX POWER SUPPLY Cable 2 CBL-0084L 1 Front ctrl cable 16 pin split, 6\", PBF (with converter head) Fan 1 FAN-0108L4 1 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731 Drive Tray(s) MCP-220-73101-0B 4 SC731 HDD Tray Optional Parts List:   Part Number Qty Description Cable 1 CBL-0044L - SATA CABLE 61CM FLAT S-S PBF Peripheral Drive 1 DVM-LITE-DVD-HBT - Black 5.25" SATA DVD, LITEON, PBF Peripheral Drive 2 DVM-LITE-DVDRW-HBT - Black 5.25" SATA DVD-RW, LITEON, PBF Heatsink / Retention SNK-P0046A4 - 2U ACTIVE CPU HS FOR INTEL LGA1156
