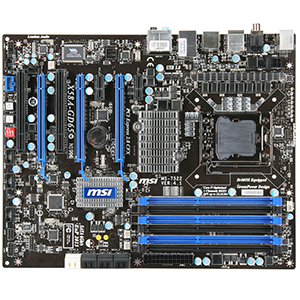

X58A-GD65
Intel® X58 Express Chipset Based
- DrMOS, the highest performance with best power-saving
- BIOS-level power-saving design
- True Blu-ray audio support
- The extra storage – Drive Booster
- The highest quality and most stable passive components
- New BIOS feature M-Flash
- Superb Stability: Military Class Components
- Supports NVIDIA 3-way SLI & ATI Crossfire
Features:
Military Class
- Military Class series products feature top components that offers users the best experience for its unparalleled quality, ultimate efficiency, and the cool & noiseless and safety for its unbeatable stability.
DrMOS
- Excellent energy-saving capability and offers high-computing performance.
- Provide superior energy-saving function and maintain an ultimate low temperature operation.
- Comes with three incredible features.
Active Phase Switching
- APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM.
- Saving Power under Variable Loading.
- Power Usage More Efficiency.
USB 3.0
- Revolutionary SuperSpeed USB 3.0, 10x faster than USB 2.0
- Up to 5Gbps bandwidth, boost data transfer rate between PC and USB device
SATA 6Gb/s
- Support next-generation SATAIII, up to 6Gbps bandwidth
- Double the data transfer rate of SATAII (3Gbps)
i-Charger
- Universal charger utility for Apple iPad, iPhone, iPad
- Faster iPad charging speed
- Compatible with all MSI Mainboards
M-Flash
- Faster and Flexible and instant
- If BIOS crash, it still can boot from USB Drive
- Update BIOS from USB Drive by M-Flash Function
Power eSATA
- MSI Power eSATA. Normally eSATA devices need extra power via an adapter or an extra USB cable. This combo port supplies the needed power, so no extra USB cable for power is needed. MSI Power eSATA is 8x faster in transferring data than normal USB ports.
USB Safeguard
- With the ESD dual-current protection chip, USB Safeguard can ideally protect your motherboard from the potential damage caused by static electricity when inserting USB devices.
Easy OC Switch
- Help end-users upgrade CPU FSB directly.
- Buy an essential CPU but want to reach higher performance.
- Skip the complicated BIOS OC setting and enjoy the higher level CPU performance.
Lossless
- The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc
- Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers
- support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs
M-Connectors
- Easy connect to front panel & chassis cable
- 2x USB, IEEE 1394, front panel (JFP1/2)& audio(JAUD1) M-connector in the package
- Easy to tell the definition of each pin
Live Update Online
The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.
ATI CrossfireX
- Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready.
- The ultimate multi-GPU performance gaming platform.
- Provides 2.7x faster performance than single graphic card solution.
Live Update 4
Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.
Specifications:
| Socket |
1366 |
| CPU (Max Support) |
i7 |
| FSB / Hyper Transport Bus |
6.4GT/s |
| Chipset |
Intel® X58+ICH10R |
| DDR3 Memory |
DDR3 800/1066/1333/1600*/1800*/2133* (OC) |
| Memory Channel |
Triple |
| DIMM Slots |
6 |
| Max Memory (GB) |
24 |
| PCI-Ex16 |
3 |
| PCI-E Gen |
Gen2 (2x16, 1x4) |
| PCI-Ex1 |
2 |
| PCI |
2 |
| SATAIII |
2 |
| SATAII |
6 |
| RAID |
0/1/5/10 |
| LAN |
10/100/1000*1 |
| TPM |
1 |
| USB 3.0 ports (Rear) |
2 |
| USB 2.0 ports (Rear) |
4 |
| Audio ports (Rear) |
6 |
| 1394 ports (Rear) |
1 |
| eSATA |
2 |
| Form Factor |
ATX |
| DrMOS |
Y |
| APS |
Y |
| SLI |
Y |
| 3-way SLI |
Y |
| CrossFire |
Y |
|
