| PC POWER AND COOLING PPCMK2S950 PRODUCT INFO |
MANUFACTURER LINKS:
PC POWER AND COOLING Website
PPCMK2S950 Specs
|
|
|

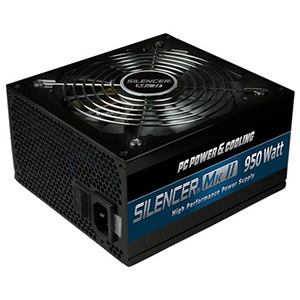

Silencer Mk II 950W
The new Silencer Mk II 950W from the power supply experts at PC Power & Cooling is another leap forward for the legendary Silencer line. A thorough update, the new Silencer Mk II strikes the right balance between server-class industry standard topology and the cutting-edge of enthusiast computer power supply design. Built with industrial and professional power users in mind, key features of the 950W Mk II include a Single +12V Rail for maximum and efficient power distribution, a generous thermally controlled 135mm double-ball bearing fan for maximum airflow at near-silent audible noise levels, extremely tight and well regulated electrical noise and ripple, an ideal array of connector types for each wattage, and ultra-high efficiency, converting up to a full 88% of AC to DC power at typical loads. The Silencer Mk II Series is fully compliant with the latest ATX12V and EPS12V specifications. Power-packed and built to last with a 7-Year Warranty.
Features:
- 950W Continuous @ 50C
- NVIDIA SLI Certified (Dual-GPU)
- 80+ Silver Certified (88% Efficiency); .98 Active PFC
- 135mm double ball-bearing fan
- Up to 90% (10dB) Less Noise per Watt
- +12VDC @83.4A (Powerful Single Rail)
- Rock-Solid, Super-Clean DC Output
- 6 x PCI-E and complete array of connectors
- Automatic Fan Speed Control Circuit
- 7-Year Warranty and Tech Support
Specifications:
| Model |
PPCMK2S950 |
| Series |
Silencer Mk II |
| Type |
ATX12V V2.2 / EPS12V |
| Wattage |
950W |
| Fan Size |
135mm double ball-bearing |
| PFC |
Active |
| Main Connector |
20+4-Pin |
| +12V Rails |
Single |
| PCI-E Connector |
6 x 6+2-Pin |
| SATA Power |
12 |
| SLI |
Ready |
| Crossfire |
Ready |
| Modular |
No |
| Efficiency |
Typical load 88% Efficiency |
| Energy-Efficient |
80 PLUS SILVER Certified |
| Input Voltage |
100 – 240V |
| Input Frequency Range |
50/60 Hz |
| Output |
+3.3V@25A,+5V@25A,+12V@83.4A,
-12V@0.8A,+5VSB @ 6.0A |
| MTBF |
>100,000 Hours |
| Dimensions |
5.9" x 3.4" x 6.3" |

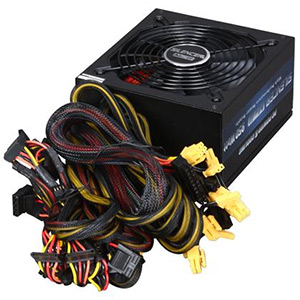

| Connectors |
1 x Main connector (20+4Pin)
1 x 8-Pin (4+4) CPU
1 x 12V (8-Pin)
7 x Peripheral
12 x SATA
1 x Floppy
6 x 6+2-Pin PCI-E |
|
|
|
