Overview:

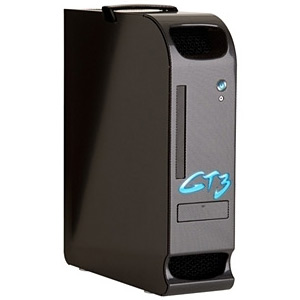

GTR's GT3: A Small Form Factor PC Chassis With the Heart of a Full-Size.
GT3 is the first small form factor computer chassis built solely to utilize full-size desktop PC components. Unlike GT3’s desktop-PC counterparts, GT3 is a fraction of a desktop-PC’s size and weight yet by utilizing full size desktop PC components, GT3 PCs are able to deliver performance previously only available from full size desktop PCs. As a result, GT3 PCs have the potential to be the smallest, highest performing PCs in the world.
GT3 accomplishes new levels of performance-per-liter through an innovative patent-pending design. Utilizing this technology, GT3 is able to incorporate full size ATX motherboards with mainstream, high-end graphics cards to deliver performance previously only available from full-size desktop PCs.
Additionally, GT3’s small size and high-tech all aluminum design make GT3 ideal for transport, allowing you to have powerful computing capability wherever needed. GT3’s retractable handle and light weight makes taking your PC with you a breeze – just unplug GT3, pull up the handle and put it in a back pack. Its that easy! No other PC-platform has as much innovation and technology packed in such a stylish yet functional design – GT3.
Features:
Full Size ATX and Micro-ATX (uATX) Motherboard Compatible
Three Flexible Add-In Card Areas
- VGA - Full Size Single-Slot OR Double-Slot Discreet Graphics. (PCI Express x16 Graphics 150W-ATX Specification 1.0)
- PCI or VGA
- PCI card or HDD and I/O panel
Standard Support For Up To Two Hard Drives
Efficient Cooling with Three Cold-Air Intakes/Fans
- Add-in Card Area
- CPU & Memory
- Power Supply
Sturdy, Light, Transportable & Compact
- All Aluminum Construction
- Smaller than competitive "cube" products
- ~10 lbs fully configured
- Patent-Pending Feature Module System allows thousands of system configuration combinations
- Add-In Card Retention System
- ABS Plastic Faux Carbon-Fiber Front Bezel/Sub frame
- Retractable Handle, Wingdle™
Specifications:
| Model Number |
GT3-BH V1.5 |
| Case Type |
Sport Compact PC™ |
| Net Weight |
7.7lbs (includes power supply) |
| Dimension (H*W*D) |
15.4”x4.25”x12.5” |
| Handle |
ABS Plastic with Stainless-Steel Frame |
| Cooling System |
Front (Upper Intake) :
80 x 80 x 20 mm Ceramic Bearing, 2000 RPM, 23.8 dB, 23.34CFM
Front (Lower Intake) :
92 x 92 x 25mm Ceramic Bearing, 2000RPM, 25.9 dB, 41.71CFM
Top (PSU Intake) :
80 x 80 x 20 mm Ball Bearing, variable RPM |
Drive Bays
- Accessible
- Hidden |
3
1 x Slim CD
1+1 x 3.5’’ HDD |
| Add-In Cards Supported |
One(1) Double Slot VGA, One(1) PCI*
One(1) Single Slot VGA, Two(2) PCI**
Full Size Graphics Card Support - UP 10.1" in length |
| Expansion Slots |
1 Slim-CD |
| Material |
Aluminum, ABS Plastic, Stainless Steel (SECC) |
| Color |
Black, Grey |
| Finish |
Black-Die Anodized Polished Aluminum |
| Motherboards |
Standard ATX, mATX |
| PSU |
- 350W ATX 12V V2.01
- Input: 120V ~ 240V AC
- EMI Certified: FCC
- Safety Certified: NEMKO, TUV, UL, CE
- MTBF: 100,000hrs
- Wires: Braided
- Power Plug: USA
|
| Front Panel |
- (4) USB 2.0 Ports
- (1) Mic In
- (1) Headphone Out
- (1) Power-On Button with integrated Power LED(Blue)
- (1) HDD LED(Red)
- (1) GT3 Logo lit with integrated Blue LED’s
|
| Miscellaneous |
- (1) Double-Slot PCI-Express x16 Riser
- (1) One-Slot PCI Riser
- (1) Slim-CD Adaptor
- (2) Front Panel USB Connector
- (1) Front Panel Audio/Mic Header
- (1) GT3 LED Header
- (1) Power Cord
- (1) Manual
- (1) Screwdriver
|
|
