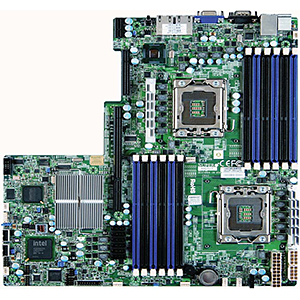

Supermicro motherboards based on the Intel 5520 chipset support Intel's Xeon® 5500 series processors in the LGA 1366 socket. With features that include support for 36 PCI-E 2.0 lanes, up to 192 GB DDR3 memory, and optional integrated IPMI 2.0 support, these boards deliver the highest performance.
Key Features:
- Intel® Xeon® processor 5600/5500
series, with QPI up to 6.4 GT/s
- Intel® 5520 (Tylersburg) Chipset
- Up to 192GB DDR3 1333/ 1066/ 800MHz
ECC Registered DIMM / 48GB
Unbuffered DIMM
- Intel® 82576 Dual-Port Gigabit
Ethernet Controller
- 6x SATA2 (3 Gbps) Ports via
ICH10R Controller
- Left Side
1 (x16) PCI-E 2.0 + 1 UIO or
1 (x16) PCI-E 2.0
Right Side
2 LAN optional
- Integrated Matrox G200eW Graphics
- Integrated IPMI 2.0 with Dedicated LAN
Specifications:
| Product SKUs |
| MBD-X8DTU-F -O |
- X8DTU-F (Standard Retail Pack)
|
| MBD-X8DTU-F -B |
|
| Physical Stats |
| Form Factor |
|
| Dimensions |
- 12.075" x 13.05" (30.67cm x 33.15cm)
|
| Processor/Cache |
| CPU |
- Dual 1366-pin LGA Sockets
- Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
- Intel®
Xeon®Processor 5600 Series (Westmere)
- Intel®
Xeon®Processor 5500 Series (Nehalem-EP)
|
| QPI |
|
| System Memory |
| Memory Capacity |
- 12x 240-pin DIMM sockets
- Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
- Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
- Memory Mirroring supported
|
| Memory Type |
- 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes |
- 1GB, 2GB, 4GB , 8GB , 16GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
- Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
|
| On-Board Devices |
| Chipset |
- Intel® 5520 (Tylersburg) chipset
- ICH10R + IOH-36D
|
| SATA |
- Intel ICH10R SATA 3.0Gbps Controller
- RAID 0, 1, 5, 10 support (Windows)
- RAID 0, 1, 10 support (Linux)
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Winbond® WPCM450 BMC
|
| Network Controllers |
- Intel® 82576 Dual-Port Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Intel® I/OAT 3 support for fast, scaleable, and reliable networking
- VMDq support for better performance of virtualization
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
| Graphics |
|
| Super I/O |
|
| Input / Output |
| Serial ATA |
- Six Serial ATA ports
- Six SATA hard drives supported
|
| LAN |
- 2x RJ45 LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 2x USB rear ports
- 2x USB on-board
- 4x USB internal headers
- Total 8 USB 2.0 Compliant
|
| VGA |
|
| Keyboard / Mouse |
- PS/2 keyboard and mouse ports
|
| Serial Port / Header |
- 1 Fast UART 16550 serial port
- 1 Fast UART 16550 serial header (Option)
|
| Chassis ( Optimized for X8DTU-F ) |
| 1U Chassis |
- CSE-111T-560UB
- CSE-113TQ-700UB
- CSE-812L-520UB
- CSE-812L-600UB
- CSE-815TQ-563UB
- CSE-815TQ-720UB
- CSE-815TQ-R700UB
|
| 2U Chassis |
- CSE-823MTQ-R700U
- CSE-825MTQ-R700UB
- CSE-825TQ-560U
- CSE-825TQ-563UB
- CSE-825TQ-R700U
- CSE-826A-R1200UB
- CSE-826E1-R800UB
- CSE-826E16-R1200UB
- CSE-826E2-R800UB
- CSE-826E26-R1200UB
- CSE-826TQ-R800UB
|
| Tower / 4U Rackmount |
- CSE-847A-R1400UB
- CSE-847E1-R1400UB
- CSE-847E16-R1400UB
- CSE-847E26-R1400UB
|
| Important Chassis Notes |
- To support the new generation Intel® Xeon® processor-based motherboards, a Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details.
|
| Expansion Slots |
| PCI-Express / PCI-X / UIO |
Left Side
- 1 (x16) PCI-E 2.0 + 1 UIO slots or
- 1 (x16) PCI-E 2.0
Right Side
- 2 LAN optional
- For 2U configuration, Please go to UIO Riser Cards page
|
| System BIOS |
| BIOS Type |
- 32Mb SPI Flash EEPROM with AMI® BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- PCI 2.2
- ACPI up to 3.0
- USB Keyboard support
|
| Management |
| Software |
- IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
- Super Doctor III
|
| Power Configurations |
- ACPI / ACPM Power Management
|
| PC Health Monitoring |
| CPU |
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
- 6-Phase-switching voltage regulator
|
| FAN |
- Total of eight fan headers supporting up to 8 fans
- Eight 4-pin fan headers
- 8x fans with tachometer status monitoring
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control (4-pin fan only)
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for 8x fan connectors
- PECI
|
| Other Features |
- Chassis intrusion detection
- Chassis intrusion header
|
| Operating Environment / Compliance |
RoHS
|
- RoHS Compliant 6/6, Pb Free
|
| Environmental Spec. |
- Operating Temperature: 10° to 35° C (50° to 95°F)
- Non-operating Temperature: -40° to 70° C (-40° to 158° F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5 to 95% (non-condensing)
|
Included Parts List:
| |
Part Number |
Qty |
Description |
| X8DTU-F |
MBD-X8DTU-F -O |
1 |
X8DTU-F Motherboard |
| I/O Cable 1 |
CBL-0044L |
6 |
57.5CM SATA FLAT S-S PBF |
| Driver Disk |
CDR-X8 |
1 |
DRIVER CD FOR X8 MOTHERBOARD |
| I/O Shield |
MCP-260-00027-0N |
1 |
STD I/O SHIELD FOR X8, H8, X7SB3 SERVER MB (3RD LAN + 4XLAN) |
| Manual |
MNL-1081 |
1 |
X8DTU / X8DTU-F MANUAL |
|
