Maximizing Possibilities with Ci Design's Storage Chassis

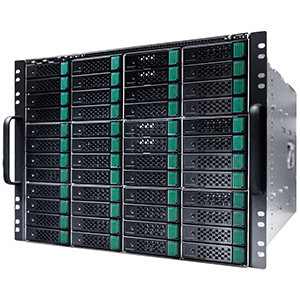

Introducing the all new Ci Design NSR 850/862 high performance, high capacity storage server system that supports up to 62 hot-swappable hard disk trays, and accomodates a wide range of server boards.
* Certain configurations may require more power.
- EIA & SSI compliant 8U Form Factor
- Standard M/B Support: Up to 13" x 13.68"
- Optional M/B Support: Extended ATX 13" x 16"

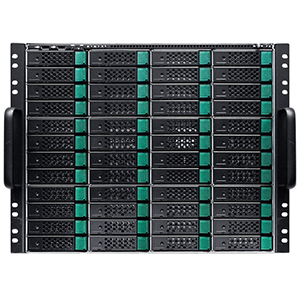

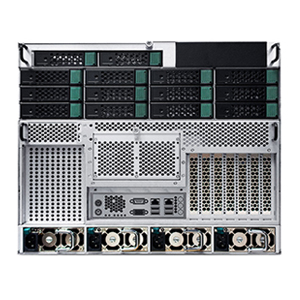

- Supports up to 62 hot-swappable 3.5" HDD trays (48 front, 14 rear)
- Integrated backplane design which supports SATA 3Gb/s or SATA/SAS 6Gb/s
- Redundant 1800W - Standard*
- Advanced thermal design with hot-swappable fans
- Shock and vibration-resistant design
||8U Form Factor - 29" (L) x 17" (W) x 14" (H)
|No. of Hard Drive
||Supports up to 62 hot-swappable HDDs (SATA ll 3Gb/s or SATA/SAS 6Gb/s interface)
||Redundant 1800W - Standard*
*Certain configuration may require more power
||5 x Fans (92mm x 92mm x 38mm)
