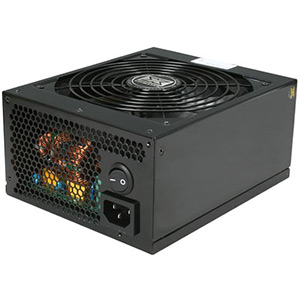

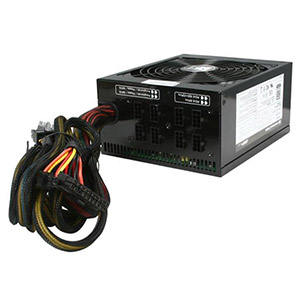

No Rules Power MC Series
Overview:
Xigmatek new MC series upgrades with 12V solid state capacitors, 12V single rail and DC to DC circuit design. New MC series provides more powerful, more efficient, and more stable output for extreme gaming users. Keeps “GO GREEN” environment-protecting concept with recycled material package and 80Plus Bronze certification.
- 80Plus Bronze certified and 88% efficiency at 230VAC.
- Great components: Japanese main capacitor and 12V output solid state capacitors.
- Low noise level by smart thermal fan contorl and 140mm super silent cooling fan.
Features:
- High efficiency over 85% Higher efficiency, lower energy loss, cooler our Earth.
- Compliant with ATX12V Ver.2.3 Compliant with latest Intel ATX12V Ver.2.3 PSU design guide.
- 0.99 Active PFC rate The highest AC utility rate and active switch for universal AC voltage.
- Real and stable 600W output Continuous 600W total DC output for real 100% loading.
- DC quality with low ripple noise Low ripple noise DC output for better devices performance.
- Japanese 105°C Main Capacitor
High-end and more stable Japanese capacitor for better output performance.
- 140mm silent cooling fan The bigger fan is equal to lower RPM and less noise.
- Smart thermal fan control Fan RPM was controlled by temperature and keep silence in typical loading.

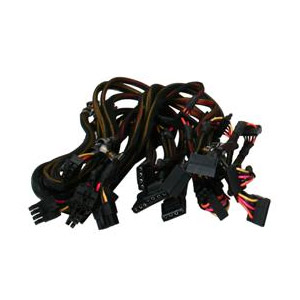

- All DC cables with mesh sleeve Reduce airflow resistance for better thermal release in PC case.
- PCIe graphic card connector support Support high-end graphic card with PCIe 6/8pin connector.
Specifications:
| Product Name |
NRP-MC802 |
| Product Number |
CPH-0800K-C02 |
| Power |
800W |
| Dimension |
150mm(L) x 180mm(W) x 86mm(H) |
| Power Factor |
PF > 0.9 |
| Cooling System |
14cm fan, Max. 1800RPM±10% |
| Hold-up Time |
16 ms |
| Noise Level |
16dBA±10% at 800RPM |
| INPUT |
| Input Voltage |
115-240VAC |
|
Input
|
47~63Hz |
| MTBF |
100,000 hrs minimum (at 25°C) |
| Input Current |
115Vac/9A max. 230Vac/5A max. |
| OUTPUT |
| |
Max/Min |
Regulation *1 |
Ripple & Noise *2 |
Output |
| +5V |
30.0A/0.2A |
+5, -5% |
50mV |
160W |
| +3.3V |
30.0A/0.3A |
+5, -5% |
50mV |
| +12V |
64.0A/0.5A |
+5, -5% |
120mV |
768W |
| -12V |
0.6A/0.0A |
+10, -10% |
120mV |
7.2W |
| +5Vsb |
3.0A/0.0A |
+5, -5% |
50mV |
15W |
| Total Power |
1000W |
| Environment |
| Operating Temp. |
5°C to 40°C |
| Storage Temp. |
-20°C to 70°C |
| Operating Humidity |
20% to 90%, non-condensing |
| Storage Humidity |
5% to 95%, non-condensing |
| Protection |
| |
DC Rail |
Trigger Point/Range |
| Over Voltage Protection |
+3.3V trip point |
4.5 Vmax |
| +5.0V trip point |
7.0 Vmax |
| +12.0V trip point |
15.6 Vmax |
| Short Protection |
All output to GND |
|
