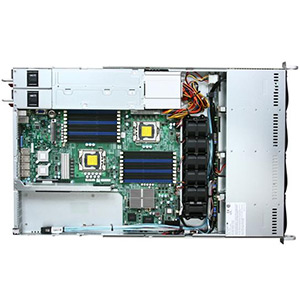

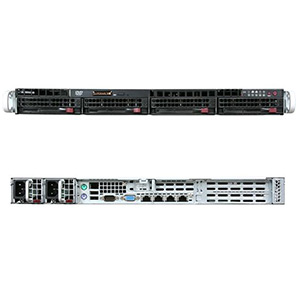

SUPERMICRO 6016T-URF4+ Black 1U Rack Server Platform, LGA1366 /2, Intel® 5520, DDR3-1333 288GB/48GB ECC/UECC /18, SATA RAID 5 HS /4, DVD, VGA, GbLAN /4, IPMI, UIO, 700W Rdt PSU

6016T-URF4+ Black 1U Rack Server Platform, LGA1366 /2, Intel® 5520, DDR3-1333 288GB/48GB ECC/UECC /18, SATA RAID 5 HS /4, DVD, VGA, GbLAN /4, IPMI, UIO, 700W Rdt PSU
SUPERMICRO
Mfg. Part No. SYS-6016T-URF4+
Item Code. BBS-SMR-SYS6016TURF4P
This items is not available and is shown for informational purposes only

SUPERMICRO SYS-6016T-URF4+ PRODUCT INFO MANUFACTURER LINKS: SUPERMICRO Website   SYS-6016T-URF4+ Specs   SUPERMICRO Support

Key Features:

  1. Intel® Xeon® processor 5600/5500
    series, with QPI up to 6.4 GT/s
  2. Up to 288GB DDR3 1333/ 1066/
    800MHz ECC Registered DIMM /
    48GB Unbuffered DIMM
  3. Left Slot (Full-height / Full-length):
    1 (x16) PCI-E 2.0 + UIO
  4. Right Slot (Low-Profile - 5.6" length):
    1 (x8) PCI-E 2.0 slot
  5. 2x Intel® 82576 Dual-Port Gigabit
    Ethernet Controllers (4 ports)
  6. 4 x 3.5" Hot-swap SATA Drive Bays,
    For Customizable Storage
  7. 700W Gold-Level Redundant
    Power Supply

Specifications:

Product SKUs
SYS-6016T-URF4+
  • SuperServer 6016T-URF4+ (Black)
Motherboard
Super X8DTU-LN4F+
Processor/Cache
CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:

    • Intel® Xeon® Processor X5600/E5600/L5600 Series
      (Westmere) 40W - 130W


    • Intel® Xeon® Processor X5500/E5500/L5500 Series
      (Nehalem-EP) 38W - 95W
QPI
  • up to 6.4 GT/s
System Memory
Memory Capacity
  • 18x 240-pin DIMM sockets
  • Supports up to 288 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage
  • 1.5 V / 1.35V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset
  • Intel® 5520 (Tylersburg) chipset
  • ICH10R
SATA
  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 10 support (Linux)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Winbond® WPCM450 BMC
Network Controllers
  • 2x Intel® 82576 Dual-Port Gigabit Ethernet Controllers (4 ports)
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • Matrox G200eW
Super I/O
  • Winbond 83827HF chip
Input / Output
Serial ATA
  • Six Serial ATA ports
  • Six SATA hard drives supported
LAN
  • 4x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB rear ports
  • 1x USB on-board
  • 4x USB internal headers
  • Total 7 USB 2.0 Compliant
VGA
  • 1x VGA Port
Keyboard / Mouse
  • PS/2 keyboard and mouse ports
Serial Port / Header
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header (Option)
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-819TQ-R700UB
Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 27.75" (705mm)
Gross Weight
  • 43 lbs (19.45 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off Button
  • System Reset Button
  • UID Button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Universal Information (UID) LED
Expansion Slots
Left Slot
  • 1 (x16) PCI-E 2.0 slot
  • 1 UIO
Right Slot
  • 1 (x8) PCI-E 2.0 (Low-Profile - 5.6" depth)
Drive Bays
Hot-swap
  • 4x 3.5" SAS / SATA Hot-swap drive trays
Peripheral Drives
DVD-ROM
  • Slim 8x DVD, 24x CD, DVD-ROM drive
SAS/SATA Backplane
1U SAS / SATA Backplane w/ SES2 Enclosure Management
System Cooling
Fans
  • 5x Cooling Fans
Shroud
  • 1x Air Shroud
Power Supply
700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Input
  • 700W: 100-140 V, 50-60 Hz, 8.5-6 Amp
  • 750W: 180-240 V, 60-50 Hz, 5-3.8 Amp
DC Output
+5V standby
  • 3 Amp
DC Output
+12V
  • 700W: 58 Amp @ 100-140V
  • 750W: 62 Amp @ 180-240V
With Power Distributor
  • +5V: 25 Amp
  • +3.3V: 25 Amp
  • -12V: 0.6 Amp
Certification   80PLUS Gold Certified
System BIOS
BIOS Type
  • 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10° to 35°C (50° to 95°F)
  • Non-operating Temperature: -40° to 70°C (-40° to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Included Parts List:

  Part Number Qty Descriptin
Motherboard / Chassis MBD-X8DTU-LN4F+
CSE-819TQ-R700UB
1
1
Super X8DTU-LN4F+ Motherboard
1U Chassis
Air Shroud MCP-310-81901-0B 1 Mylar air shroud for SC819, X8DTU+ MB
Backplane BPN-SAS-815TQ 1 BPN-SAS-815TQ-O-P
Cable 1 CBL-0341L 1 70CM, INTERNAL USB CABLE FOR SLIM USB DVD ROM
Cable 2 CBL-0343L 1 IPASS TO 4 SATA 76/66/54/45 w/66cm SB
Peripheral Drive *** DVM-PNSC-DVD-SBT 1 Black slim SATA DVD, Panasonic
Adapter 2 CDM-USATA-G-O-P 1 mini-SATA to USB adapter for slim DVD
Peripheral Drive *** DVM-TEAC-DVD-SBT 1 Black slim SATA DVD, TEAC
CD CDR-X8 1 For X8 series
Riser Card RSC-R1UU-UE16 1 RSC-R1UU-UE16-O-P
Riser Card RSC-R1UU-E8R+ 1 RSC-R1UU-E8R+ REV 1.00, PBF
Heatsink / Retention SNK-P0037P 2 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP)
Power Supply PWS-703P-1R 2 1U REDUNDANT PWS 50MM W PMBUS GOLD EFFICIENCY
Power Distributor PDB-PT819-8824 1 SC819 24pin redundant PDB
Cable 3 CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
Fan 1 FAN-0101L4 5 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Fan 2 CSE-PT0100 1 CSE-PT0100 Dummy fan for 40x56 counter-rotating fan
Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5\" HDD tray (w/ hollowed dummy)
Mounting Rails MCP-290-00062-0N 1 Rail set, quick/quick, default for 1U 17.2\"W SC819,119

Optional Parts List:

  Part Number Qty Description
UIO Controller Card(s) - - Please refer to UIO Add-on Card Table



Note: *** Only 1 drive is included, these items (***) are interchangeable. CDM-SATA w/ CBL-0061L and CDM-USATA-G w/ CBL-0341L
