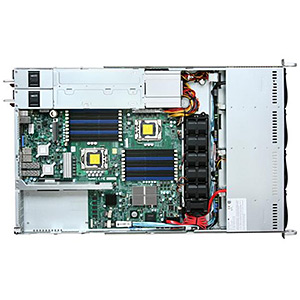

    SUPERMICRO 6016T-6RFT+ Black 1U Rack Server Platform, LGA1366 /2, Intel® 5520, DDR3-1333 288GB/48GB ECC/UECC /18, SAS RAID 5 HS /4, DVD, VGA, 10 GbLAN /2, GbLAN /2, IPMI, 700W Rdt PSU

    6016T-6RFT+ Black 1U Rack Server Platform, LGA1366 /2, Intel® 5520, DDR3-1333 288GB/48GB ECC/UECC /18, SAS RAID 5 HS /4, DVD, VGA, 10 GbLAN /2, GbLAN /2, IPMI, 700W Rdt PSU
    SUPERMICRO
    Mfg. Part No. SYS-6016T-6RFT+
    Item Code. BBS-SMR-SYS6016T6RFTP
    This product is currently priced at:
    $1826.06
    Price shown will be adjusted in the checkout with
    respect to shipping and taxes (where required)
    AVAILABILITY: SPECIAL ORDER HELP
    ORDER QTY:

    SHOW PRINTABLE E-MAIL PRODUCT ADD TO CART


    SUPERMICRO SYS-6016T-6RFT+ PRODUCT INFO MANUFACTURER LINKS: SUPERMICRO Website   SYS-6016T-6RFT+ Specs   SUPERMICRO Support

    Key Features:

    1. Intel® Xeon® processor 5600/5500
      series, with QPI up to 6.4 GT/s
    2. Up to 192GB DDR3 1333/1066/
      800MHz ECC Registered DIMM/
      48GB Unbuffered DIMM
    3. Left Slot (Full-height/Full-length):
      2 (x8) PCI-E 2.0 slots
    4. Right Slot (Low-Profile - 5.5" depth):
      1 (x4) PCI-E 2.0 (in x8 slot)
    5. LSI 2108 8-Port 6Gbps SAS Controller;
      RAID 0, 1, 5, 6, 10
    6. Intel® 82599EB 10 Gigabit +
      82576 Dual-Port Gigabit
      Ethernet Controller
    7. 4 x 3.5" Hot-swap SAS/SATA Drives,
      For Customizable Storage
    8. 700W Gold-Level Redundant
      Power Supply

    Specifications:

    Product SKUs
    SYS-6016T-6RFT+
    • SuperServer 6016T-6RFT+ (Black)
    Motherboard
    Super X8DTU-6TF+
    Processor/Cache
    CPU
    • Dual 1366-pin LGA Sockets
    • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:

      • Intel® Xeon® Processor X5600/E5600/L5600 Series
        (Westmere) 40W - 130W


      • Intel® Xeon® Processor X5500/E5500/L5500 Series
        (Nehalem-EP) 38W - 95W


    QPI
    • up to 6.4 GT/s
    System Memory
    Memory Capacity
    • 18x 240-pin DIMM sockets
    • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
    • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
    • Memory Mirroring supported
    Memory Type
    • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
    DIMM Sizes
    • 1GB, 2GB, 4GB , 8GB , 16GB
    Memory Voltage
    • 1.5 V / 1.35V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    • Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
    On-Board Devices
    Chipset
    • Intel® 5520 (Tylersburg) chipset
    • ICH10R
    SAS
      • LSI 6Gbps SAS 2108 w/ Hardware RAID support
      • RAID 0, 1, 5, 6, 10 support
      • BBU (battery backup) extension kit (optional)
    SATA
    • Intel ICH10R SATA 3.0Gbps Controller
    • RAID 0, 1, 5, 10 support (Windows)
    • RAID 0, 1, 10 support (Linux)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • Winbond® WPCM450 BMC
    Network Controllers
    • Intel® 82599EB 10 Gigabit Ethernet Controller with 2 SFP+ interfaces
    • Intel® 82576 Dual-Port Gigabit Ethernet Controller
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
    • VMDq support for better performance of virtualization
    • 1x Realtek RTL8201N PHY (dedicated IPMI)
    Graphics
    • Matrox G200eW
    Super I/O
    • Winbond 83827HF chip
    Input / Output
    Serial ATA
    • Six Serial ATA ports
    • Six SATA hard drives supported
    LAN
    • 2x RJ45 LAN ports
    • 2x SFP+ LAN port
    • 1x RJ45 Dedicated IPMI LAN port
    USB
    • 2x USB rear ports
    • 1x USB on-board
    • 2x USB internal headers
    • Total 5 USB 2.0 Compliant
    VGA
    • 1x VGA Port
    Keyboard / Mouse
    • PS/2 keyboard and mouse ports
    Serial Port / Header
    • 1 Fast UART 16550 serial port
    • 1 Fast UART 16550 serial header (Option)
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-819TQ-R700UB
    Dimensions
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 27.75" (705mm)
    Gross Weight
    • 43 lbs (19.45 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off Button
    • System Reset Button
    • UID Button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2x Network activity LEDs
    • System Overheat LED
    • Universal Information (UID) LED
    Expansion Slots
    Left Slot
    • 2 (x8) PCI-E 2.0 slots
    Right Slot
    • 1 (x4) PCI-E 2.0 (in x8 slot -Low-Profile - 5.5" depth)
    Drive Bays
    Hot-swap
    • 4x 3.5" SAS / SATA Hot-swap drive trays
    Peripheral Drives
    DVD-ROM
    • Slim 8x DVD, 24x CD, DVD-ROM drive
    SAS/SATA Backplane
    1U SAS / SATA Backplane w/ SES2 Enclosure Management
    System Cooling
    Fans
    • 5x Cooling Fans
    Shroud
    • 1x Air Shroud
    Power Supply
    700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
    AC Input
    • 700W: 100-140 V, 50-60 Hz, 8.5-6 Amp
    • 750W: 180-240 V, 60-50 Hz, 5-3.8 Amp
    DC Output
    +5V standby
    • 3 Amp
    DC Output
    +12V
    • 700W: 58 Amp @ 100-140V
    • 750W: 62 Amp @ 180-240V
    With Power Distributor
    • +5V: 25 Amp
    • +3.3V: 25 Amp
    • -12V: 0.6 Amp
    Certification   80PLUS Gold Certified
    System BIOS
    BIOS Type
    • 32Mb SPI Flash EEPROM with AMI® BIOS
    BIOS Features
    • Plug and Play (PnP)
    • PCI 2.2
    • ACPI up to 3.0
    • USB Keyboard support
    Operating Environment / Compliance
    RoHS

    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10° to 35°C (50° to 95°F)
    • Non-operating Temperature: -40° to 70°C (-40° to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5 to 95% (non-condensing)

    Included Parts List:

      Part Number Qty Descriptin
    Motherboard / Chassis MBD-X8DTU-6TF+
    CSE-819TQ-R700UB
    1
    1
    Super X8DTU-6TF+ Motherboard
    1U Chassis
    Air Shroud MCP-310-81901-0B 1 Mylar air shroud for SC819, X8DTU+ MB
    Backplane BPN-SAS-815TQ 1 BPN-SAS-815TQ-O-P
    Cable 1 CBL-0288L 1 IPASS TO 4 SATA 70/60/50/50 CM RA, W/ SB,PBF
    Peripheral Drive *** DVM-TEAC-DVD-SBT 1 Black slim SATA DVD, TEAC
    Peripheral Drive *** DVM-PNSC-DVD-SBT 1 Black slim SATA DVD, Panasonic
    CD CDR-X8 1 For X8 series
    Riser Card RSC-R1UU-E8R+ 1 RSC-R1UU-E8R+ REV 1.00, PBF
    Riser Card RSC-R1UU-2E8 1 RISER CARD RSC-R1UU-2E8
    Heatsink / Retention SNK-P0037P 2 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP)
    Power Supply PWS-703P-1R 2 1U REDUNDANT PWS 50MM W PMBUS GOLD EFFICIENCY
    Power Distributor PDB-PT819-8824 1 SC819 24pin redundant PDB
    Cable 2 CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    Fan 1 CSE-PT0100 1 CSE-PT0100 Dummy fan for 40x56 counter-rotating fan
    Fan 2 FAN-0101L4 5 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Drive Tray(s) MCP-220-00075-0B 4 Black 3.5" HDD tray
    Mounting Rails MCP-290-00062-0N 1 Rail set, quick/quick, default for 1U 17.2"W SC819,119

    Optional Parts List:

      Part Number Qty Description
    UIO Controller Card(s) - - Please refer to our UIO Add-on Card Table
    Cables CBL-0347L
    CBL-0348L
    CBL-0349L
    -
    -
    -
    1M 10GbE SFP+ TO SFP+ PASSIVE M-M 24AWG
    3M 10GbE SFP+ TO SFP+ PASSIVE M-M 24AWG
    5M 10GbE SFP+ TO SFP+ PASSIVE M-M 24AWG



    Note: *** Only 1 drive is included, these items (***) are interchangeable. CDM-SATA w/ CBL-0061L and CDM-USATA-G w/ CBL-0341L
