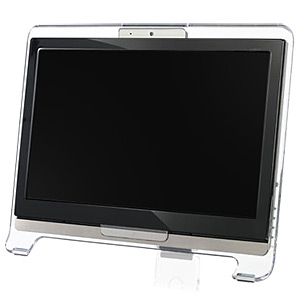

VESA-mountable 18.5" All-in-one PC Barebone with Single Touch
No Optical Drive Included with barebone
Features:
- 18.5" LCD Widescreen (16:9) with Single Resistive Touch, 1366x768
- Support Windows® 7
- Intel® Atom™ D525 (Dual Core) Processor on Board
- Intel® NM10 Express Chipset
- 2 x SO-DIMM Slot for DDR3 1600/1333 MHz Memory (4GB Max)
- 1 x Drive Bay for 2.5" SATA HDD
- 1 x Slim ODD Drive Bay (Optical drive sold separately)
- WiFi ready with a Half-height PCIe mini card slot and Internal Wireless Antenna
- 1 x Gigabit LAN
- 1 x 1.3MP Webcam with Microphone include
- 1 x 6-in-1 Card Reader
- Angle-adjustable Foot Stand and VESA Mounting Compliance
Overview:
Resistive Single Touch Screen to Broaden Use of Computers
A923-004BUS comes with the resistive single touch screen to enable the wider computing applications, such as KIOS, POS, interactive educational computer, medical electronics and so on.
New-generation Intel® Atom™ Processor Embedded
The latest Intel® Atom™ D525 dual-core processor uses the all-new micro architecture with a special small-scale configuration and low power consumption design to get A923-004BUS a powerful and energy saving computing core.
Low Power Consumption
Compared to the traditional desktop PC, MS-A923 all-in-one PC is certified by Energy Star and save the power consumption up to 80%. It can therefore meet most of the government and school project requirements on the energy saving.
VESA Mountable
The adapter kit is included in the package to make MS-A923 VESA-mountable on the wall.
Barebone Specifications:
| Dimensions |
420mm (H) x 450mm (W) x 35mm (D) with stand
380mm (H) x 450mm (W) x 35mm (D) without stand |
| Weight |
10.80 lbs. without stand |
| Display |
18.5" TFT LCD panel (16:9), 1366 x 768 |
| Touch Screen |
Single resistive touch |
| Expansion Slot |
1 x Half-height PCIe mini card slot for WLAN |

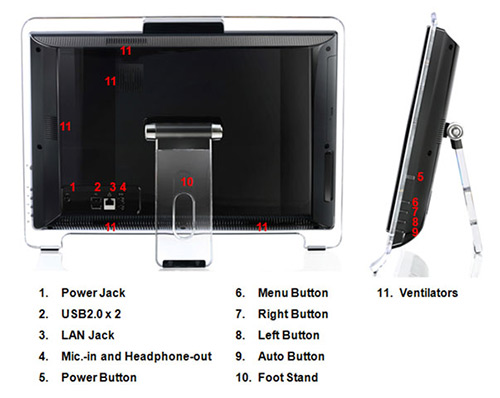

| Side I/O |
2 x USB2.0 ports
1 x 6-in-1 card reader (support XD, SD, SDHC, MS, MS Pro and MMC) |
| Rear I/O |
2 x PS/2 (for keyboard and mouse)
1 x Mic.-in
1 x Headphone-out
2 x USB2.0
1 x LAN jack
1 x Power jack |
| Hardware Switch |
1 x Power on/off switch with LED |
| Webcam |
1 x 1.3MP webcam with microphone |
| Drive Bays |
1 x External bay for slim ODD drive
1 x Internal bay for 2.5" SATA hard disk drive |
| Built-in Speakers |
2 Internal stereo speakers, 78dB+/- 3dB @ 3W |
| Power Supply |
External 65W power adapter with active PFC |
LCD Specifications:
| |
409.8mm (H) × 230.4mm(V) (18.5" diagonal) |
| Resolution |
AG type |
| Resolution |
WXGA (1366 x 768 pixels) |
| Surface |
3H Hard-coating |
| Brightness |
250cd/m2 |
| Viewing Angle |
170° Horizonal, 160° Vertical |
| Color |
16.7 millions of colors |
| Response |
5 ms |
| Pixel Pitch |
0.3 (H) x 0.3 (M) mm |
| Drive Bays |
1 x External bay for slim ODD drive
1 x Internal bay for 2.5" SATA hard disk drive |
| Built-in Speakers |
2 Internal stereo speakers, 78dB+/- 3dB @ 3W |
| Power Supply |
External 65W power adapter with active PFC |
Motherboard Specifications:
| PCB Size |
Proprietary form factor, 430mm x 85mm |
| CPU |
1.80GHz Atom D525 (dual core) processor on board |
| Chipset |
Intel® NM10 Express |
| Main Memory |
1 SODIMM slot for DDR3 1600/1333 MHz SDRAM, 4GB Max. |
| Graphics |
Intel GMA 3150, share memory up to 512MB |
| Audio |
Realtek® ALC888S
Compliant with Azalia 1.0 |
| LAN |
1 Gigabit LAN (controlled by Realtek® RTL8111DL) |
| WLAN |
1 Half-height PCIe mini card slot (MS-6897 applied here)
Internal WLAN antenna included |
|
