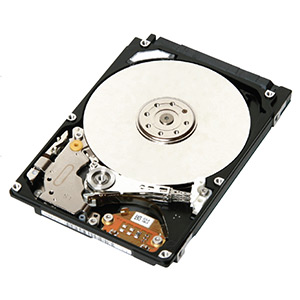

Designed for optimal performance and high durability, the Toshiba MKxx61GSYN series of 7,200 RPM hard disk drives deliver 160 to 640GB* of storage capacity in the 2.5-inch form factor. The MKxx61GSYN family of Serial ATA drives offers extreme power efficiency and superior operating acoustics over 3.5-inch drives for today’s high-end notebook PCs, gaming laptops, and mobile workstations as well as Energy Star® all-in-one and slimline desktop PCs.
Toshiba couples greater power efficiency of the MKxx61GSYN drives with other environmentally-conscious solutions including RoHS-compliance and utilization of components that reduce PVC (polyvinyl chloride) and BFRs (brominated flame retardants) as well as meet halogen-free** standards.
An optional free-fall sensor responds to drop events and securely locks the recording heads in place off the media before system impact. This provides an additional level of ruggedness and durability to the MKxx61GSYN drives and is particularly suitable for mobile applications.
Key Features
- Up to 640GB* of Storage Capacity
- Optimal Performance at 7,200 RPM
- Serial ATA 3.0 Gb/sec, Revision 2.6 / ATA-8
- 16MB Cache Buffer
- Optional Free-fall Sensor
Specifications
| |
MK1661GSYN |
MK2561GSYN |
MK3261GSYN |
MK5061GSYN |
MK6461GSYN |
| Series Overview |
|
| Drive Capacity |
160GB* |
250GB* |
320GB* |
500GB* |
640GB* |
| Drive Interface |
Serial ATA 3.0 Gb/sec, Revision 2.6 (ATA-8) |
| Number of Platters (disks) |
1 |
1 |
1 |
2 |
2 |
| Number of Data Heads |
1 |
2 |
2 |
4 |
4 |
| RoHS Compliant |
Yes |
| Transfer Rate to Host |
3 Gb/sec |
| Performance |
|
| Track-to-track Seek |
1 ms |
| Average Seek Time |
12 ms |
| Rotational Speed |
7,200 RPM |
| Average Latency |
4.16ms |
| Buffer Size |
16MB |
| Power Requirements |
|
| Voltage |
5V (+/- 5%) |
| Spin up (start) Power |
5.5 watts |
| Seek Power |
2.3 watts |
| Read/Write Power |
2.1 watts |
| Low Power Idle |
0.8 watts |
| Standby Power |
0.16 watts |
| Sleep Power |
0.13 watts |
| Physical Size |
|
| Dimensions (W) x (D) x (H) |
69.85 mm (2.75") x 100 mm (3.94") x 9.5 mm (0.37") |
| Weight |
98 g (3.46 oz) |
98 g (3.46 oz) |
98 g (3.46 oz) |
115 g (4.06 oz) |
115 g (4.06 oz) |
| Environmental |
|
| Temp - Operating |
5° to 55°C (41° to 131°F) |
| Temp - Non-Operating |
-40° to 65°C (-40° to 149°F) |
| Vibration - Operating |
9.8 m/s² (1.0G) 5 to 500 Hz |
| Vibration - Non-Operating |
49 m/s² (5.0G) 15 to 500 Hz |
| Shock - Operating |
3,185 m/s² (325G) 2ms |
| Shock - Non-Operating |
8,820 m/s² (900G) 1ms |
| Acoustics |
|
| Acoustics (idle) |
23 dB |
23 dB |
23 dB |
26 dB |
26 dB |
| Acoustics (seek) |
23 dB |
23 dB |
23 dB |
26 dB |
26 dB |
| Warranty |
|
| Limited Warranty |
3 years (from date of purchase) |
*One Terabyte (1TB) = 1,000 Gigabytes (GB). One Gigabyte (1GB) means 109 = 1,000,000,000 bytes using powers of 10. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 230 = 1,073,741,824 bytes, and therefore shows less storage capacity. Available storage capacity will also be less if the computer includes one or more pre-installed operating systems, pre-installed software applications, or media content. Actual formatted capacity may vary.
**Products are considered “halogen-free” when each homogeneous material in the product consists of a maximum bromine or chlorine concentration of 900 parts per million for weight percentage. Group VIIA halogens, fluorine, iodine and astatine, are not restricted in the industry-standard, ENV0199 description. Toshiba also restricts concentrations of red phosphorus and antimony trioxide in its halogen-free HDD products.
|
