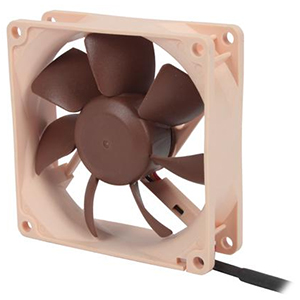

| NOCTUA NF-R8-1800 PRODUCT INFO |
MANUFACTURER LINKS:
 NF-R8-1800 Specs
|
|
|
Overview:
Sound-optimised blade geometry and profile: The NF-R8 is the first fan employing a novel 80mm rotor which was developed by the Austrian Institute for Heat-Transmission and Fan Technology (Österreichisches Institut für Wärmeübertragung und Ventilatorentechnik, ÖIWV). Thanks to the special optimisation of the blade geometry towards ultra low noise application, the NF-R8 is up to 10% more quiet than current high-end fans at the same flow rate.
Self-stabilising oil-pressure bearing (SSO bearing): The NF-R8 series are equipped with a magnetically centred, self lubricating oil-pressure bearing that provides a new level of quietness and long-term stability.
Specifications:
| Size |
80x80x25 mm |
| Bearing |
SSO-Bearing |
| Blade Geometry |
Raised-Blade-Design |
| Rotational Speed (+/- 10%) |
1800 RPM |
| Rotational Speed with L.N.A. (+/- 10%) |
1300 RPM |
| Rotational Speed with U.L.N.A. (+/- 10%) |
800 RPM |
| Airflow |
53 m³/h |
| Airflow with L.N.A. |
39 m³/h |
| Airflow with U.L.N.A. |
26 m³/h |
| Acoustical Noise |
17 dB(A) |
| Acoustical Noise with L.N.A. |
10 dB(A) |
| Acoustical Noise with U.L.N.A. |
7* dB(A) |
| Input Power |
1,32 W |
| Input Current |
0,11 A |
| Voltage Range |
4-13 V |
| MTBF |
> 150.000 h |
| Scope of Delivery |
- Ultra-Low-Noise Adaptor (U.L.N.A.)
- Low-Noise Adaptor (L.N.A.)
- 4 Vibration Compensators
- 3:4-Pin Adaptor
- 4 Fan Screws
|
| Warranty |
6 years |
|
|
|
