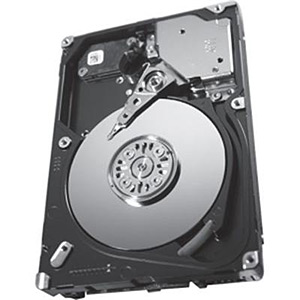

Seagate® Savvio® 15K.3 6-Gb/s 300GB Hard Drive
The Seagate Savvio 15K.3 drive enables OEMs to build solutions that help data centers process more transactions within a given time frame and meet IT service level agreements. This helps companies increase revenue generation, improve customer satisfaction and complete critical business processes faster while keeping data safe. It also provides the performance benefits needed to entice customers to migrate from legacy, 3.5-inch drives to higher-performing 2.5-inch drives.
Key Features and Benefits:
- Doubles Tier 1 data storage capacity (up to 300 GB)
- Provides up to 21% improvement in sequential data read/write performance over prior generation
- Delivers up to 3% faster random read and up to 4% faster random write performance vs. prior generation, and up to 10% faster random read and up to 8% faster random write performance vs. legacy 3.5-inch 15K drives1
- Improves scalability and reliability with 6Gb/s SAS interface support
- Supports Protection Information (PI) to help ensure data is not changed from what the user created—from the moment the data is created throughout the life of the data2
- Improves reliability by up to 20% with an annualized failure rate (AFR) of 0.44%
- Instant Secure Erase™ feature cryptographically erases the data encryption key, thereby helping to protect data should drives be lost, stolen or retired.
- Eases transition from legacy 3.5-inch, 15K drives to next-generation 2.5-in, 15K drives
- Unified Storage architecture minimizes system complexity and reduces operating costs.
- Self-Encrypting Drive (SED) option helps data centers be compliant with corporate and federal data security mandates.3
Specifications:
| Model Number |
ST9146753SS |
| Interface |
6-Gb/s SAS |
| Cache |
64MB |
| Capacity |
146GB |
| Areal density (avg) |
448Gb/in2 |
| Guaranteed Sectors |
286,749,488 |
| PHYSICAL |
| Height (maximum) |
15.00mm (0.591 in) |
| Width (maximum) |
70.10mm (2.760 in) |
| Length (maximum) |
100.45mm (3.955 in) |
| Weight (typical) |
193g (0.426 lb) |
| PERFORMANCE |
| Spin Speed (RPM) |
15,000 RPM |
| Sustained data transfer rate |
202MB/s |
| Average latency |
2.0ms |
| Random read seek time |
2.7ms |
| Random write seek time |
3.1ms |
| I/O data transfer rate |
600MB/s |
| Unrecoverable read errors |
1 in 1016 |
| RELIABILITY |
| MTBF |
2,000,000 hours |
| Annual Failure Rate |
0.44% |
| POWER |
|
| 12V start max current |
0.86A |
| 5V start max current |
0.67A |
| Average idle power |
3.84W |
| ENVIRONMENT |
| Ambient Temperature |
|
| Operating |
5°–55°C |
| Nonoperating |
-40°–70°C |
| Maximum operating temperature change |
20°C per hour |
| Maximum nonoperating temperature change |
20°C per hour |
| Shock |
|
| Operating Shock (max) |
40 Gs for 2ms |
| Nonoperating Shock (max) |
300 Gs for 2ms |
| ACOUSTICS |
| Acoustics (Idle Volume) |
3.25 bels |
| Acoustics (Seek Volume) |
3.35 bels |
| Features |
|
| Storage Type |
HDD |
| Encryption |
Yes |
1 Actual improvement varies depending on queue depth and transfer size.
2 Protection Information (PI) requires PI compliant host or controller support.
3 Self-Encrypting Drive option requires TCG-compliant host or controller support. Not available in all countries
|
