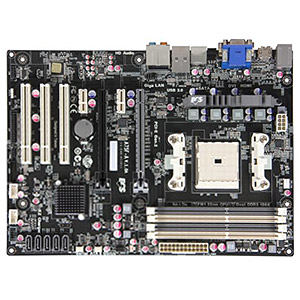

ECS newly emerged A75F-A model in AMD FM1 Socket
A75F-A is a combination of AMD FM1 Socket with A75 chipset. It's furnished with Dual-Channel DDR3 memory, 5 SATA (6Gb/s), multiple outputs (DVI, HDMI, VGA), e-SATA (6Gb/s), USB 3.0 and Realtek 8111E GigaLAN. For all these features and attracting price, ECS A75F-A is definitely your top choice.
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for system performance and superior gaming capability.
All Solid Capacitors
ECS’s All-Solid-Capacitors design brings the great benefit of better durability to users. Better conductivity and heat resistance can be expected as well thus the system stability can be assured under critical conditions.
Support latest generation USB 3.0, SATA 3.0 (6Gbps) and eSATA 3.0 (6Gbps) high-speed interface technologies that meet the high-capacity and high-speed needs of multi-media publishing and PC gaming.
Clear CMOS Button
One of ECS 4"E" Design which is especially a great plus that brings users remarkable convenience while overclocking or tweaking system performance.
Multi-language BIOS allows you to see and set up the BIOS with your native language. It helps Non-English users to solve the problem of setting up the BIOS and achieve extra system performance easily.
ECS GUI UEFI BIOS
ECS GUI UEFI BIOS is a convenient tool for tweaking BIOS in Graphical interface. Users can select functions in BIOS with mouse and keyboard. The user-friendly interface with ECS designed wallpaper radically brings users convenience and easy-to-use experience.
Super Burn Test
A burning test with increased temperature up to 50 degree is applied to eliminate computer functional impairments caused by severe external environment
AMD APU Platform
The new generation of AMD Accelerated Processing Unit (APUs) combiningthe central processing unit (CPU) with the graphics processing unit(GPU) in a single-chip design, features stutter-free HD video playback,DirectX® 11-capable graphics.
Super DirectX 11
DirectX 11 features the latest technologies of Compute Shaders, Direct 2D, Multithreaded Rendering and Tessellation for create rich worlds, realistic characters and more fluid gameplay.
AMD Dual Graphics
AMD Dual graphics technology enables an impressive visual uplift and added compute capacity. The integrated graphics core can be combined with the external graphics card to deliver higher overall performance.
ATI CrossFire X
The technology not only combines multi-GPU and motherboard power that soars into a new dimension of graphics capability, but also delivers the highest image quality and screen resolutions, even with the most demanding 3D titles.
Dual Channel DDR3 2600 OC
Dual DDR3 2600 O.C. is able to raise processor and RAM clock up to 2600mHz through capable RAM in overclock mode. It assists system to obtain optimal performance to meet the O.C. enthusiast needs.
PCI EXPRESS 2.0
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.
eSATA III with 6Gb/s data transfer rate can promise substantial performance gain to a new hard drive enclosure. The data transfer rate is double than previous SATA II(3Gb/s) and also supports external HDD hot plug and keyed connector end for fool-proof.
The latest generation Super Speed USB 3.0 Card is able to transfer data 10 times faster than USB 2.0. An innovative power management system provide better energy saving and carry more power to recharge more USB rechargeable devices. USB 3.0 Card is compatible with USB 2.0 to add more convenience and excellent performance.
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.
A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.
EZ Charger technology provides 3 times current than general USB port in off mode for USB devices. It’s useful and excellent, especially for the iPhone, iPad and iPod touch devices that need a large amount of current for faster recharging within less time.
Certified For Windows® 7
Windows® 7 platform introduces a number of manageability improvements that can reduce total cost of ownership by helping to increase automation, improve user productivity, and provide flexible administrative control to meet compliance requirements. It is more user-friendly and has been optimized to consume less system resources with Windows® 7 as well. Furthermore, the VT technology is enhanced to support real-time multimedia application including video playback and 3D games.
ECS Motherboards have been certified by EuP 2013 of European Union. Stand by mode and off mode not to exceed 0.50W consumption to save energy and maintain sustainable environment.
- Socket FM1 for AMD A series/ E Series/Athlon Quard-core/Athlon Dual-core/Sempron Dual-core processors
- Note: This board supports CPU up to 100W TDP; you can refer to AMD website to check your CPU.
- Dual-channel DDR3 memory architecture
- 4 x 240-pin DDR3 DIMM socket support up to 64GB, per one DIMM support 16GB
- Support DDR3 up to 1333/1600/1866/2133(OC)/2400(OC)/2600(OC)
- *Duo to limitation of AMD chipset spec, it supports up to 1866 MHz for motherboards with a single DIMM per channel
- * Please refer to Memory QVL for more information
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows?32-bit OS.
For Windows?64-bit OS with 64-bit CPU, there is no such limitation
- 1 x PCI Express x16 slot
- 1 x PCI Express x4 slot
- 2 x PCI Express x1 slots
- 3 x PCI slots
- Support by AMD A75
• 5 x Serial ATA 6.0Gb/s devices
• 1 x eSATA 6Gb/s port
• RAID0, RAID1, RAID10 configuration
- Realtek ALC892 8-Ch High Definition audio CODEC
- Compliant with 8CH HD audio specification
- Realtek 8111E 10/100/1000 Fast Ethernet Controller
|Rear Panel I/O
- 4 x USB 2.0 Ports
- 2 x USB 3.0 ports compatible to both USB 3.0/2.0 devices (blue)
- 1 x eSATA 6Gb/s port
- 1 x PS/2 keyboard & PS/2 mouse connectors
- 1 x D-sub(VGA)
- 1 x DVI Port
- 1 x HDMI Port
- 1 x RJ45 LAN connector
- 1 x SPDIF out connector
- 1 x Audio port (Line-in, Front Out, Mic_in Rear, Center & Woofer, Back Surrond, Side Surround)
- 1 x Clear_CMOS button
|Internal I/O Connectors & Headers
- 1 x 24-pin ATX Power Supply connector
- 1 x 8-pin ATX 12V Power Connector
- 1 x 4-pin CPU_FAN connector
- 1 x 3-pin SYS_FAN connector
- 1 x 3-pin PWR_FAN connector
- 3 x USB 2.0 headers support additional 6 USB ports
- 1 x USB 3.0 header supports additional 2 USB 3.0 Ports
- 5 x Serial ATA 6Gb/s connectors
- 1 x COM header
- 1 x LPT header
- 1 x Front panel audio header
- 1 x Front panel header
- 1 x Speaker header
- 1 x SPDIF out header
- AMI BIOS with 32Mb SPI ROM
- Support Milti-language BIOS Utility
- Support ECS M.I.B III Utility
- Support eBLU
- Support eSF
- Support EZ Charger
- Support eDLU
- Support eOC
* The information above is provided as reference only and is subject to change without notice.
