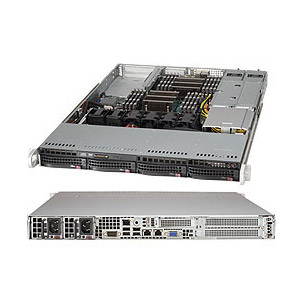

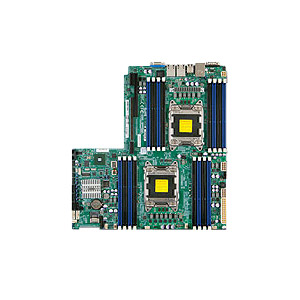

Key Features: Intel® Xeon® processor E5-2600 family; QPI up to 8GT/s Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets Add on card support: 2x PCI-E 3.0 x16 Full-heigh, Half-length slots Intel® i350 Dual port Gigabit Ethernet Controller; 2x LAN ports 4x Hot-swap 3.5" SAS/SATA HDD Bays for Customizable Storage 700W Redundant Power Supplies 80 PLUS, Gold Level Certified Specifications: Product SKUs SYS-6017R-WRF SuperServer 6017R-WRF (Black) Motherboard Super X9DRW-iF Processor/Cache CPU Intel® Xeon® processor E5-2600 (up to 130W TDP) Dual Socket R (LGA 2011) Cache Up to 20MB System Bus QPI up to 8 GT/s System Memory Memory Capacity 16x 240-pin DDR3 DIMM sockets Supports up to 512 GB DDR3 ECC Registered memory (RDIMM) Supports up to 192 GB DDR3 ECC Un-Buffered memory (UDIMM) Memory Type 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB Memory Voltage 1.5 V, 1.35 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C602 Chipset SATA Via SATA directly SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1, 5, 10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Renesas SH7757 BMC Network Controllers Intel® i350 Dual Port Gigabit Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI) Graphics G200 (Renesas SH7757 BMC w/ graphic controller) Super I/O Nuvoton W83527HG Input / Output SATA/SAS Customizable storage LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 6x USB 2.0 ports total (4x rear + 2x via header) VGA 1x VGA port Serial Port / Header 1x Fast UART 16550 port / 1 Header Chassis Form Factor 1U Rackmount Model CSE-815TQ-R700WB Dimensions Width 17.2" (437mm) Height 1.7" (43mm) Depth 25.6" (650mm) Gross Weight 36 lbs (18.1kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button UID button LEDs Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED Expansion Slots PCI-Express 2x PCI-E 3.0 x16 Full-heigh, Half-length slots Drive Bays Hot-swap 4x Hot-swap 3.5" SAS / SATA HDD trays (PCI-E storage card required) Peripheral Drives DVD-ROM Slim DVD-ROM drive (optional) Backplane SAS/SATA HDD Backplane (SAS support requires optional SAS controller) System Cooling Fans 5x 4cm Counter-rotating PWM fans Power Supply 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C AC Voltage 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp DC Output +5V standby 3 Amp DC Output +12V 700W: 58 Amp @ 100-140V 750W: 62 Amp @ 180-240V With Power Distributor +5V: 25 Amp +3.3V: 25 Amp -12V: 0.6 Amp Certification   80PLUS Gold Certified System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 / 3.0 / 4.0 BIOS resuce hot keys USB Keyboard support SMBIOS 2.3 UEFI Operating Environment / Compliance RoHS   RoHS Compliant Environmental Spec. Operating Temperature:    10°C to 35°C (50°F to 95°F) Non-operating Temperature:    -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing) Included Parts List:   Part Number Qty Descriptin Motherboard / Chassis MBD-X9DRW-iF CSE-815TQ-R700WB 1 1 Super X9DRW-iF Motherboard 1U Chassis Backplane BPN-SAS-815TQ-O-P 1 BPN-SAS-815TQ-O-P Cable 1 CBL-0343L-01 1 30AWG 76/66/54/45CM, W/ 66CM SB, S CD CDR-X9 1 Driver CD for X9 series Riser Card RSC-R1UW-2E16-O-P 1 RSC-R1UW-2E16-O-P Heatsink / Retention SNK-P0047PS 2 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM Power Supply PWS-704P-1R 2 1U REDUNDANT PWS PMBUS GOLD EFFICIENCY 54.5MM Optional Parts List:   Part Number Qty Description Storage Controller Card(s) (PCI-E Only) - - Please refer to our Storage Add-on Card Table Network Card (PCI-E Only) - - Please refer to our Network Add-on Card Table DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT1 DVM-TEAC-DVD-SBT1 DVM-PLDS-DVDRW-SBT2 DVM-TEAC-DVDRW-SBT1 1 SLIM DVD-ROM / DVD-RW SATA DRIVE DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD kit Internal 2.5" HDD Tray (FDD Slot) MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD Internal 2.5" HDD Tray (DVD Slot) MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" HDD USB/COM Port Tray (FDD Slot) CSE-PT40L-B0 1 Black USB/COM port tray in slim FDD bay
