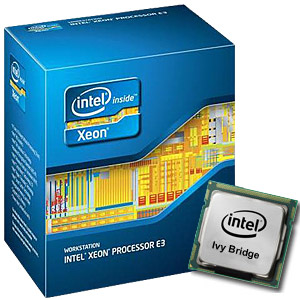

Intel® Xeon® Processor E3-1200 v2 Product Family
Affordable, powerful, and secure foundation for small business servers
Entry-level server platforms featuring the Intel® Xeon® processor E3-1200 product family are ideal for value-conscious companies looking for their first server or a robust and affordable alternative to a desktop system used as a server. Built with advanced security features, these platforms are designed to deliver 24/7 dependability and improve business productivity with industry-leading performance. Easy to set up and manage, they are ideal for use in secure data storage, file sharing, hosted email and Web services, and collaborative applications.
The Intel Xeon processor E3-1200 v2 product family server platform features the Intel® C200 Series Chipset and enables a range of features to meet small business computing demands. Advanced features like Intel® Virtualization Technology, Intel® Trusted Execution Technology, and Intel® Turbo Boost Technology 2.0 are standard on all processor SKUs.
Features and Benefits:
| Features |
Benefits |
| 22nm Manufacturing Process Technology |
Enhanced performance and energy-efficiency
- Up to 21% more performance and 32% more performance per watt
than previous generation 1
|
| Server-Class Memory Support |
Increased system reliability and faster access to data stored in memory
- ECC memory detects and corrects up to 99.988% of memory errors 2
- DDR3-1600 memory eliminates data bottlenecks
|
| Server-Class Platform Validation |
Real Server Capabilities for Small Business
- Validation on server-class workloads and operating systems ensures 24x7 reliability and stability
|
| SATA 6 Gb/s |
Faster data access, system startups, and application load times
- Better support for high-speed solid-state drives (SSDs)
|
| Intel® Turbo Boost Technology 2.0 3 |
Automatically increases performance when needed
- Accelerates processor or graphics performance for peak workloads
- Quicker transitions to sleep state improves energy efficiency
|
| Intel® Secure Key Technology |
Provides heightened security from malicious software attacks
- Hardware-based random number generator enables highest encryption standard
|
| Intel® Active Management Technology (Intel® AMT) 4 |
Flexible management for simpler maintenance and more reliable operation
- Local and remote management for in-house or outsourced IT
|
| Server-Class Platform Configuration Options |
Extra capacity and flexibility for storage and networking connections
- Up to 14 USB 2.0 ports
- Up to 16 PCIe 3.0 and 4 PCIe 2.0 ports (4 more than desktop)
|
| Intel® Rapid Storage Technology (Intel® RST) |
Protects critical business information with redundant storage capabilities
- Enables software RAID levels 0/1/10/5
|
| Intel® Hyper-Threading Technology (Intel® HT) 5 |
Faster performance for concurrently running business applications
- Thread-level parallelism uses processing resources more efficiently
|
| Intel® Virtualization Technology for Directed I/O (Intel® VT-d) 6 |
Enables fast network/storage communications in a virtualized environment
- Comprehensive hardware assists for I/O device virtualization
- Near-native I/O performance with improved security and reliability
|
| Intel® AES New Instructions (Intel® AES-NI) 7 |
Improves security without slowing response times
- Enables fast and secure data encryption and decryption
|
Specifications:
| Essentials |
|
Processor Number
|
E3-1230V2 |
|
# of Cores
|
4 |
|
# of Threads
|
8 |
|
Clock Speed
|
3.3 GHz |
|
Max Turbo Frequency
|
3.7 GHz |
|
Intel® Smart Cache
|
8 MB |
|
Bus/Core Ratio
|
33 |
|
DMI
|
5 GT/s |
|
Instruction Set
|
64-bit |
|
Instruction Set Extensions
|
AVX, SSE4.1,SSE4.2 |
|
Embedded Options Available
|
No |
|
Lithography
|
22 nm |
|
Max TDP
|
69 W |
| Memory Specifications |
|
Max Memory Size (dependent on memory type)
|
32 GB |
|
Memory Types
|
DDR3-1333/1600 |
|
# of Memory Channels
|
2 |
|
Max Memory Bandwidth
|
25.6 GB/s |
|
ECC Memory Supported
|
Yes |
| Graphics Specifications |
|
Integrated Graphics
|
|
| Expansion Options |
|
PCI Express Revision
|
3.0 |
|
# of PCI Express Ports
|
1 |
| Package Specifications |
|
Max CPU Configuration
|
1 |
|
Package Size
|
37.5mm x 37.5mm |
|
Sockets Supported
|
FCLGA1155 |
| Advanced Technologies |
|
Intel® Turbo Boost Technology
|
2.0 |
|
Intel® vPro Technology
|
Yes |
|
Intel® Hyper-Threading Technology
|
Yes |
|
Intel® Virtualization Technology (VT-x)
|
Yes |
|
Intel® Virtualization Technology for Directed I/O (VT-d)
|
Yes |
|
Intel® Trusted Execution Technology
|
Yes |
|
AES New Instructions
|
Yes |
|
Intel® 64
|
Yes |
|
Idle States
|
Yes |
|
Enhanced Intel SpeedStep® Technology
|
Yes |
|
Intel® Demand Based Switching
|
Yes |
|
Thermal Monitoring Technologies
|
Yes |
|
Intel® Fast Memory Access
|
Yes |
|
Intel® Flex Memory Access
|
Yes |
|
Execute Disable Bit
|
Yes |
|
Intel® VT-x with Extended Page Tables (EPT)
|
Yes |
|
