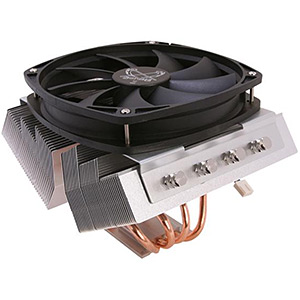

"Grand Kama Cross Rev.B" CPU Cooler
Grand Kama Cross Rev. B Top-Flow CPU Cooler is based on a X-Structure setting a gap between the two heat sinks. By applying this design, improved airflow could be achieved resulting in higher cooling performance, especially for motherboard components. Compared to conventional Top-Blow CPU Coolers Grand Kama Cross Rev. B is even more efficient.
Features:
- Top Mount Fan
By pointing the airflow of the fan towards the motherboard, Chipsets and MOS-FETs on VR modules can be cooled simultaneously. This is supported by the X-structure with two seperate heat sinks, leaving a gap in between for better airflow.
- Slip Stream 140 mm PWM Fan
By applying the new Slip Stream 140 fan, wider area of components on the motherboard can be cooled compared to 120mm fans while keeping low noise and high cooling ability for the CPU.
- 4-Way Mounting
4-Way (direction) mounting is possible. This allows you to configure the optimized airflow direction inside your chassis and improved adoption to space restrictions of your mainboard / chassis.
Specifications:
Model Name:
Grand Kama Cross Rev. B
Model No.:
SCKC-2100
Manufacturer:
Scythe Co., Ltd. Japan
Compatibility:
Intel®:
Socket T / LGA775
Socket LGA1155
Socket LGA1156
Socket LGA1366
Socket LGA2011
AMD®:
AMD 754/939/940
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket FM1
Dimensions:
177x140x137 mm / 6.97x5.51x5.39 in
Overall Weight:
750 g / 26.46 oz.
Accessory:
Thermal Grease, User Manual
Material of Base Plate:
Nickel-plated copper (more information)
Fan-Specifications
Model Name::
Slip Stream 140 PWM
Model No.:
SM1425SL12LM-P
Fan Dimensions:
140x140x25 mm / 5.51x5.51x0.98 in
Fan Speed:
500 ~ 1,300 rpm (± 10%)
Air Flow:
27,2 ~ 69,93 CFM = 46 ~ 119 m³/h
Noise Level:
9.6 ~ 24.7 dBA
Input Power:
2,64 W
Input Current:
0,22 A
Voltage Range:
12
|
