Features:
- Eight 2.5” hot-swap hard drives
- One 750W DC Platinum efficiency common redundant power supplies
- Five 80mm fans for enterprise level cooling

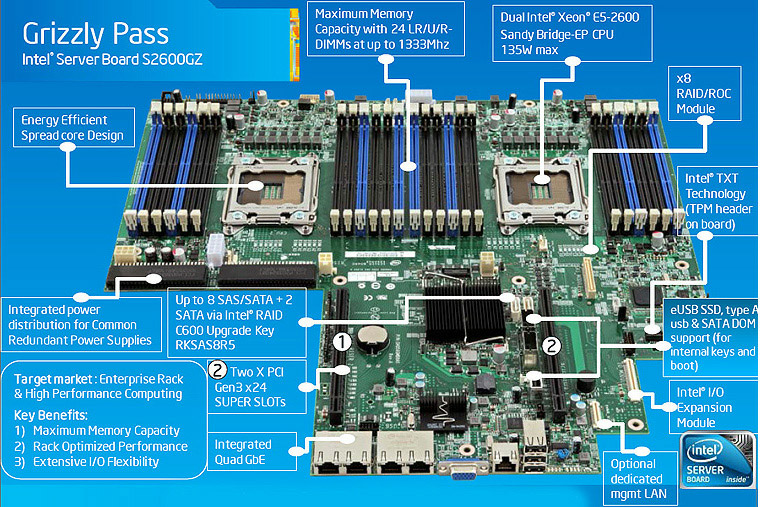

- Intel® Server Board S2600GZ
- Supports the Intel® Xeon® processor E5-2600 product family
- 24 memory sockets support LR/U/R-DIMMs, delivering up to 768 GB of memory capacity
- Two PCIe* Gen3 x24 Super Slots for superb I/O flexibility
- Energy efficient spread core design with Intel® Efficient Power Technology
- Onboard flash boot support includes eUSB SSD and SATA DOM
- Intel® Trusted Platform Module (Intel® TPM) header for Intel® Trusted Execution Technology (Intel® TXT) support
Available expansion options include:
- Intel® RAID C600 upgrade key including options for up to eight SAS/SATA ports plus two SATA 6 Gb ports
- Intel® Remote Management Module 4
- Intel® I/O Expansion modules
Incredible Server Performance and Flexibility in an Energy Efficient Custom Design
The Intel® Server System R2200GZ family takes full advantage of the new Intel® Xeon® processor E5-2600 product family capabilities with the Intel® Server Board S2600GZ family. The Intel Server System R2200GZ features an energy efficient spread core design and maximum (768 GB) memory capacity with up to 24 DIMMS, S2600GZ-based rack-optimized server systems deliver unmatched performance, I/O capacity, and flexibility in an expansive family of 1U and 2U systems for the most demanding enterprise data center, cloud, or high performance computing (HPC) environments.
The Intel Server System R2200GZ family makes use of several exclusive new Intel® Server Board Technology Innovations exclusively available on Intel® Server Products. Intel® Advanced Management Technology helps simplify and optimize system management for higher capacity and more secure platform management; Intel® Quiet Thermal Technology provides thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency; and Intel® Efficient Power Technology helps improve power efficiency and reliability.
Target Applications
For data center, cloud, or HPC customers who require a no compromise, rack-optimized solution, the R2200GZ family delivers maximum (768 GB) memory capacity, I/O expansion, and powerful performance in an energy efficient design.
Specifications:
|
System Order Code
|
R2208GZ4GC
|
R2208GZ4GC10G
|
R2208GZ4IS
|
|
Essentials
|
|
Limited 3-year warranty
|
Yes
|
Yes
|
Yes
|
|
Extended warranty available for purchase
|
Yes
|
Yes
|
Yes
|
|
Chassis form factor
|
Rack
|
Rack
|
Rack
|
|
Chassis dimensions
|
3.44" x 16.93" x 27.95"
|
3.44" x 16.93" x 27.95"
|
3.44" x 16.93" x 27.95"
|
|
Board form factor
|
Custom 16.5x16.5
|
Custom 16.5x16.5
|
Custom 16.5x16.5
|
|
Rack rails included
|
Yes
|
Yes
|
Yes
|
|
Socket
|
Socket R
|
Socket R
|
Socket R
|
|
Max CPU configuration
|
2
|
2
|
2
|
|
Rack-friendly board
|
Yes
|
Yes
|
Yes
|
|
Power supply
|
750W AC common redundant power supply (Platinum efficiency)
|
750W AC common redundant power supply (Platinum efficiency)
|
750W -48V DC power supply (Platinum efficiency)
|
|
Power supply type
|
AC
|
AC
|
DC
|
|
# of power supply
|
2
|
2
|
1
|
|
Redundant fans
|
Yes
|
Yes
|
Yes
|
|
Redundant power
|
Yes
|
Yes
|
Yes
|
|
Heat sink included
|
Yes
|
Yes
|
Yes
|
|
Included items
|
Integrated Intel® Server System with 8 SATA ports standard. Includes: 1 Intel® Server Board S2600GZ4 in a 2U chassis, 1 airduct, 1 standard control panel, 1 front 1xVGA and 2xUSB on dedicated tray, support for 2xSSD to be mounted on airduct , 8 2.5” hot-swap drive carriers, 2 SFF8088 to SFF8088 cables, 2 CPU heat sinks, redundant and hot-swap cooling fans, 2 risers with 3 x8 slots (2xFHFL 1xFHHL), RKSATA8 RAID upgrade key, 2 750W AC power supply, Intel® Remote Management Module 4 (key and NIC) preinstalled, 1 value rail kit
|
Integrated Server System with pre-installed dual port SFP 10GB IO Module. Includes: 1 Intel® Server Board S2600GZ4 in a 2U chassis, 1 airduct, 1 standard control panel, 1 dedicated tray with front 1xVGA and 2xUSB, support for 2x SSD mounting on airduct, 8 2.5” hot-swap drive carriers, 2 SFF8088 to SFF8088 cables, 2 CPU heat sinks, redundant and hot-swap cooling fans, 2 risers with 3 x8 slots (2xFHFL 1xFHHL), RKSATA8 RAID upgrade key, 2 750W AC power supply, Intel® Remote Management Module 4, 1 set value rails, 2-port SFP 10GB I/O module pre-installed
|
Integrated Server System with 48V DC power supply. Includes: 1 Intel® Server Board S2600GZ4 in 2U chassis, 1 airduct, 1 standard control panel, 1 dedicated tray with front 1xVGA and 2xUSB, support for 2x SSD mounting on airduct, 8 2.5” hot-swap drive carriers, 2 SFF8088 to SFF8088 cables, 2 CPU heat sinks, redundant and hot-swap cooling fans, 2 risers with 3 x8 slots (2xFHFL 1xFHHL), RKSATA8 RAID upgrade key, (1) 750W -48V DC power supply, Intel® Remote Management Module 4, 1 Set value rails
|
|
# of 2.5" hard drives
|
8
|
8
|
8
|
|
2.5" hard drive support
|
Supports 8 hot-swap 2.5" SATA 6G drives standard, SAS 6G with activation key/discrete controller
|
Supports 8 hot-swap 2.5" SATA 6G drives standard, SAS 6G with activation key/discrete controller
|
Supports 8 hot-swap 2.5" SATA 6G drives standard, SAS 6G with activation key/discrete controller
|
|
Intel® Server Management software
|
Yes
|
Yes
|
Yes
|
|
Memory Specifications
|
|
Memory types
|
DDR3 ECC UDIMM 1333, RDIMM 1333, LRDIMM 1333
|
DDR3 ECC UDIMM 1333, RDIMM 1333, LRDIMM 1333
|
DDR3 ECC UDIMM 1333, RDIMM 1333, LRDIMM 1333
|
|
# of DIMMs
|
24
|
24
|
24
|
|
Graphics Specifications
|
|
Integrated graphics
|
Yes
|
Yes
|
Yes
|
|
Expansion Options
|
|
PCIe* x8 Gen 3
|
6
|
6
|
6
|
|
PCIe x16 Gen 3
|
2
|
2
|
2
|
|
Intel® I/O Expansion Module PCIe x8 Gen 3
|
1
|
1
|
1
|
|
Intel® Internal I/O Expansion Module PCIe x8 Gen 3
|
1
|
1
|
1
|
|
I/O Specifications
|
|
# of USB ports
|
5
|
5
|
5
|
|
# of SATA ports
|
10
|
10
|
10
|
|
RAID configuration
|
Software RAID 1,0,10 optional 5
|
Software RAID 1,0,10 optional 5
|
Software RAID 1,0,10 optional 5
|
|
# of serial ports
|
2
|
2
|
2
|
|
Integrated LAN
|
4x 1GbE
|
4x 1GbE
|
4x 1GbE
|
|
# of LAN ports
|
4
|
4
|
4
|
|
Optical drive support
|
Yes
|
Yes
|
Yes
|
|
Integrated SAS ports
|
8
|
8
|
0
|
|
Embedded USB (eUSB) solid-state drive option
|
Yes
|
Yes
|
Yes
|
|
Advanced Technologies
|
|
Intel® Remote Management Module support
|
True
|
True
|
True
|
|
Integrated BMC with IPMI
|
IPMI 2.0
|
IPMI 2.0
|
IPMI 2.0
|
|
Intel® TPM Version
|
2
|
2
|
2
|
|
Intel® Intelligent Power Node Manager
|
Yes
|
Yes
|
Yes
|
|
Intel® On-Demand Redundant Power
|
Yes
|
Yes
|
Yes
|
|
Intel® Server Board Technology Innovations
|
|
Intel® Advanced Management Technology
|
All capabilities
|
All capabilities
|
All capabilities
|
|
Intel® Efficient Power Technology
|
All capabilities
|
All capabilities
|
All capabilities
|
|
Intel® Quiet Thermal Technology
|
All capabilities
|
All capabilities
|
All capabilities
|
|
