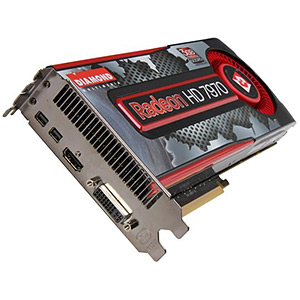

AMD Radeon™ HD 7970 PCIE 3G GDDR5 Video Graphics Card
- PCI Express 3.0 x16 bus interface
- DirectX® 11.1 capable graphics
- OpenGL 4.2 support
- Image quality enhancement technology
- AMD Eyefinity multi-display technology
- AMD App Acceleration
- AMD HD3D technology
- AMD CrossFire™ multi-GPU technology
- Cutting-edge integrated display support
- Integrated HD audio controller
- AMD PowerPlay
- AMD PowerTune technology
- AMD Catalyst
Overview:
Based on the revolutionary new 28nm GCN (Graphics Core Next) architecture, the DIAMOND Radeon HD7970 enables the absurdly high frame rates at demanding setting while using less power and better transistor efficiency, maximizes the most astonishing gaming performance like never before.
The DIAMOND Radeon HD7970 comes natively equipped with support for PCI Express 3.0 as well as DirectX 11.1. With world-class AMD CrossFire performance scaling, enthusiasts’ GPU experience is maximized when paired with the latest platforms. By utilizing AMD PowerTune technology, the DIAMOND Radeon HD7970 performs a real-time power draw to enable higher clocks and faster gaming; furthermore, with AMD ZeroCore Power Technology, no power is wasted when the graphics card is not in use.
The DIOMOND Radeon HD7970 also ships with AMD Eyefinity 2.0 technology which features all-new support for stereo 3D, universal bezel compensation and brand new display configurations. Fold and mine faster than ever with AMD App Acceleration to speed up daily applications such as video rendering, web browsing and office applications. The DIOMOND Radeon HD7970 is your personal checklist for ground-breaking technology.
Specifications:
| Performance |
| |
|
| GPU |
7970 |
| ASIC Core |
Tahiti XT |
| Core Clock |
925MHz |
| BUS |
PCI Express 3.0 x16 |
| Ports |
1 Dual Link DVI, 1 HDMI and 2 Mini Display Port |
| Cooling |
Active - FanCooler |
| MFG Process |
28nm process technology |
| Transistor Count |
4.3 billions |
| Stream Processors |
2048 |
| Power Consumption |
175W |
| Memory |
| |
|
| Memory Clock |
1375MHz |
| Memory Configuration |
64Mx32 |
| Memory Type |
GDDR5 |
| Memory Bandwidth |
264 GB/sec |
| Memory Size |
3072MB |
| Memory Interface |
384-bit interface |
| Video Quality |
| |
|
| CrossFire |
CrossFire X |
| Direct-X |
DirectX® 11.1 capable graphics |
| Open GL |
OpenGL 4.2 |
| Max Resolution Analog |
VGA Max resolution 2048x1536 |
| Max Resolution Digital |
HDMI 1.4a Max resolution: 4096x3112 |
| HDR F.Point Rendering |
128 |
| HDR Integer |
|
| Standard Slot Solution |
DOUBLE |
| Anti Aliasing Modes |
Up to 24x multi-sample and super-sample anti-aliasing modes |
| Antisotropic Modes |
16x angle independent anisotropic texture filtering |
| Texture Support |
HDR texture compression |
| Display Support |
| |
|
| HDMI |
HDMI 1.4a with support for stereoscopic 3D |
| HDMI MODE |
1.4a |
| Native Display Support |
DisplayPort 1.2 Max resolution: 4096x2160 per display |
| Dual Display support |
YES |
| Package Content |
| |
|
| DIAMOND AMD Radeon™ HD 7970 PCIE 3G GDDR5 Video Graphics Card |
| INSTALL CD |
| Quick Start Guide |
| CROSSFIRE Bridge Interconnect |
| Mini Display Port to Single Link DVI Active dongle |
| HDMI to Single Link DVI (passive) dongle |
| |
| System Requirements |
| |
|
| Operating System |
WIN 7 32 , WIN 7 64
WINVISTA32 , WINVISTA64
WINXP , WINXP64
MCE
|
| System CPU |
Pentium Intel Duo, AMD X64 or higher |
| CPU Speed |
2.4 GHz or higher CPU |
| System Memory |
1024MB |
| Power Supply |
500W (or greater) power supply with one 150W 8-pin PCI Express power connector and one 75W 6-pin PCI Express power connector recommended Certified power supplies are recommended. Refer to http://support.amd.com/us/certified/power-supplies/Pages/listing.aspx for a list of Certified products |
| Hard Disk Space |
100MB |
| CD DVD |
YES |
| BUS |
PCI Express x16 |
| Available Slot |
DOUBLE |
| Chassis |
ATX |
| Monitor |
Digital flat-panel (DFP) displays or DVI-I Compatible or digital CRT display or High-resolution VGA monitor or Display Port |
|
