Product Collection |

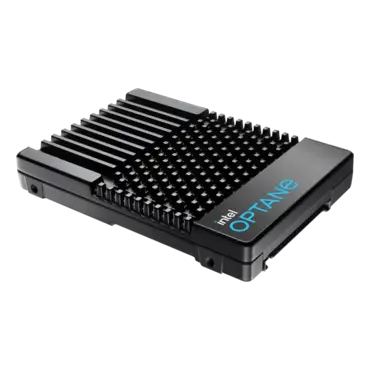

Intel® Optane™ SSD DC P5800X Series |
Code Name |
Products formerly Alder Stream |
Status |
Launched |
Launch Date |
Q4'20 |
Performance Specifications |
Sequential Bandwidth - 100% Read (up to) |
7200 MB/s |
Sequential Bandwidth - 100% Write (up to) |
6200 MB/s |
Random Read (100% Span) |
1500000 IOPS |
Random Write (100% Span) |
1500000 IOPS |
Latency - Read |
5 µs |
Latency - Write |
5 µs |
Power - Active |
21W |
Power - Idle |
4.7W |
Reliability |
Vibration - Operating |
2.17 Grms, (5-700 Hz), random |
Vibration - Non-Operating |
3.13 Grms (5-800 Hz), random |
Shock (Operating and Non-Operating) |
1,000 G, 0.5 ms, half sine |
Operating Temperature Range |
0°C to 70°C |
Operating Temperature (Maximum) |
70 °C |
Operating Temperature (Minimum) |
0 °C |
Endurance Rating (Lifetime Writes) |
100 DWPD |
Mean Time Between Failures (MTBF) |
2 Million Hours |
Uncorrectable Bit Error Rate (UBER) |
< 1 sector per 10^17 bits read |
Warranty Period |
5 yrs |
Package Specifications |
Components |
Intel(R) Optane(TM) Memory Media |
Weight |
140g |
Form Factor |
2.5" 15mm |
Interface |
PCIe 4.0 x4, NVMe |
Advanced Technologies |
Enhanced Power Loss Data Protection |
Yes |
Hardware Encryption |
AES 256 bit |
High Endurance Technology (HET) |
Yes |
Temperature Monitoring and Logging |
Yes |
End-to-End Data Protection |
Yes |
