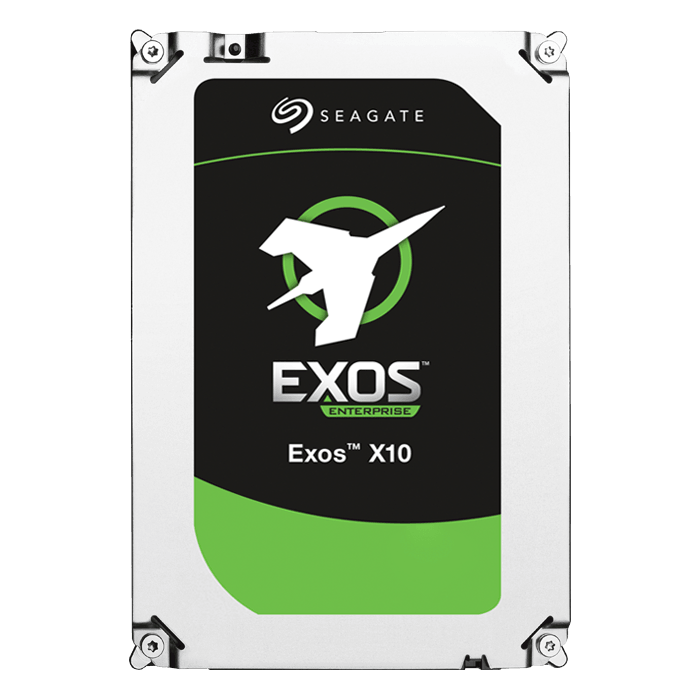

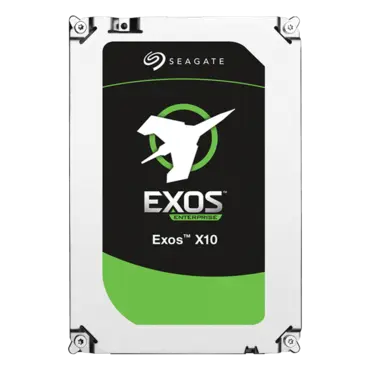

10TB Exos X10 ST10000NM0156, 7200 RPM, SATA 6Gb/s, 512e, 256MB cache, SED, TCG Enterprise SSC, 3.5" HDD

  • SKU: 13663211
  • Manufacturer: SEAGATE
  • MPN: ST10000NM0156
Starting At
Specifications SATA 6Gb/s Standard
Capacity 10TB
SED Model (512e) ST10000NM0156
Helium Sealed-Drive Design With Wide Weld Yes
Digital Environmental Sensors Yes
Protection Information (T10 DIF)
SuperParity Yes
PowerChoice/PowerBalanceTechnology Yes
Low Halogen/Hot-Plug Support Yes
Cache, Multisegmented (MB) 256
Organic Solderability Preservative Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours) 2,500,000
Reliability Rating @ Full 24×7 Operation (AFR) 0.35%
Nonrecoverable Read Errors per Bits Read 1 sector per 10E15
Power-On Hours per Year (24×7) 8760
512e Sector Size (Bytes per Sector) 512
4Kn Sector Size (Bytes per Sector) 4096
Limited Warranty (years) 5
Spindle Speed (RPM) 7200
Interface Access Speed (Gb/s) 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s) 249MB/s
Random Read/Write 4K QD16 WCD (IOPS) 170, 370
Average Latency (ms) 4.16
Interface Ports Single
Rotational Vibration @ 1500Hz (rad/s²) 12.5
Power Consumption
Idle A (W) Average 5W
Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% 8.0
Max Operating Power, Random Read 4K/16Q (W) 8.4
Power Supply Requirements +12 V and +5 V
Temperature, Operating (°C) 5°C – 60°C
Vibration, Nonoperating: 10Hz to 500Hz (Grms) 2.27
Shock, Operating 2ms (Read/Write) (Gs) 70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs) 250
Height (mm/in, max) 26.11mm/1.028in
Width (mm/in, max) 101.85mm/4.010in
Depth (mm/in, max) 147.0mm/5.787in
Weight (g/lb) 650g/1.433lb
