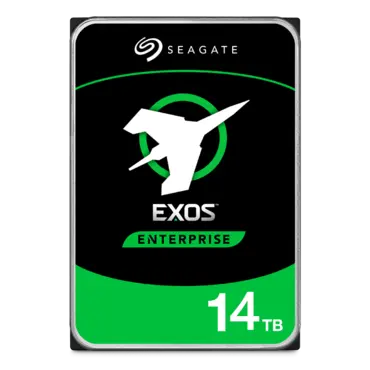

14TB Exos® X16 ST14000NM002G, FastFormat™, 7200 RPM, SAS 12Gb/s, 512e/4Kn, 256MB cache, 3.5" HDD

Quantity:
  • SKU: 12778350
  • Manufacturer: SEAGATE
  • MPN: ST14000NM002G
  • Availability: CONTACT US
Starting At
$350.14
Specifications 12 Gb/s SAS
Capacity 14TB
Standard Model FastFormat™ (512e/4Kn) ST14000NM002G
Features
Helium Sealed-Drive Design Yes
Protection Information (T10 DIF) Yes
SuperParity Yes
Low Halogen Yes
PowerChoiceIdle Power Technology Yes
PowerBalancePower/Performance Technology Yes
Hot-Plug Support Yes
Cache, Multi-segmented (MB) 256
Organic Solderability Preservative Yes
RSA 2048 Firmware Verification (SD&D) Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours) 2 500 000
Reliability Rating @ Full 24×7 Operation (AFR) 0,35%
Non-recoverable Read Errors per Bits Read 1 sector per 10E15
Power-On Hours per Year (24×7) 8 760
512e Sector Size (Bytes per Sector) 512, 520, 528
4Kn Sector Size (Bytes per Sector) 4,096, 4,160, 4,224
Limited Warranty (years) 5
Performance
Spindle Speed (RPM) 7,200 RPM
Interface Access Speed (Gb/s) 12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s, MiB/s) 261, 249
Random Read/Write 4K QD16 WCD (IOPS) 170/440
Average Latency (ms) 4,16
Interface Ports Dual
Rotation Vibration @ 20-1500 Hz (rad/sec²) 12,5
POWER CONSUMPTION
Idle A (W) Average 5 W
Max Operating, Random Read/Write 4K/16Q (W) 10.2, 6.2
Power Supply Requirements +12 V and +5 V
Environmental
Temperature, Operating (°C) 5°C – 60°C
Vibration, Non-operating: 2 to 500 Hz (Grms) 2,27
Shock, Operating 2 ms (Read/Write) (Gs) 50
Shock, Non-operating 2 ms (GS) 200
Physical
Height (mm/in, max) 26.11 mm/1.028 in
Width (mm/in, max) 101.85 mm/4.01 in
Depth (mm/in, max) 147 mm/5.787 in
Weight (lb/g) 670 g/1.477 lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8
