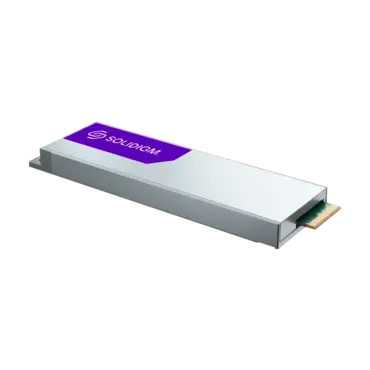

15.36TB D5-P5430 9.5mm, 5900 / 2300 MB/s, 3D QLC NAND, PCIe NVMe 4.0 x4, EDSFF E1.S SSD
- SKU: 17514783
- Manufacturer: Solidigm
- MPN: SBFPFUBU153T001
- Availability: CONTACT US
Price
$1,994.64
| Product Details | |
| Capacity | 15.36 TB |
| Form Factor | E1.S 9.5mm |
| Interface | PCIe 4.0 x4, NVMe |
| Weight | 66.5 gms |
| Lithography Type | 3D5 |
| Use Conditions | Server/Enterprise |
| Performance Specifications | |
| Sequential Bandwidth - 100% Read (up to) | 5900 MB/s |
| Sequential Bandwidth - 100% Write (up to) | 2300 MB/s |
| Random Read (100% Span) | 931500 IOPS (4K, QD256) |
| Random Write (100% Span) | 59000 IOPS (8K, QD256) |
| Power - Active | 20W |
| Power - Idle | 5W |
| Latency - Random Read (typ.) | 108μs |
| Latency - Random Write (typ.) | 16μs |
| Latency - Sequential Read (typ.) | 7μs |
| Latency - Sequential Write (typ.) | 9μs |
| Reliability | |
| Warranty Period | 5 years |
| Endurance Rating (Lifetime Writes) | Up to 0.51 DWPD (8K RW) / Up to 14.43 PBW |
| Mean Time Between Failures (MTBF) | 2 million hours |
| Uncorrectable Bit | <1 sector per 10^17 |
| Error Rate (UBER) | bits read |
| Vibration - Operating | 2.17 GRMS (5 - 700 Hz) Max |
| Vibration - Non-Operating | 3.13 GRMS (5 - 800 Hz) Max |
| Shock (Operating and Non-Operating) | 1,000 G (Max) at 0.5 msec |
| Operating Temperature Range | 0 - 70°C |
| Ordering Specifications | |
| Solidigm™ Solid State Drive D5-P5430 Series (15.36 TB, E1.S 9.5mm PCIe 4.0 x4, 3D5, QLC) Generic No Opal Single Pack | |
| Ordering Code | SBFPFUBU153T001 |
| Shipping Media | 1 PACK (1PK) |
