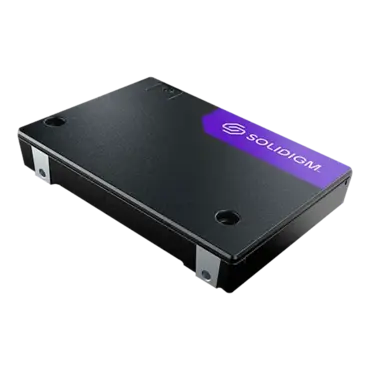

15.36TB D7-PS1030 15mm, 14500 / 9300 MB/s, 3D TLC NAND, PCIe NVMe 5.0 x4, U.2 2.5" SSD
- SKU: 17780933
- Manufacturer: Solidigm
- MPN: SB5PH27X153T001
- Availability: CONTACT US
Price
$2,412.42
| Product Details | |
| Capacity | 15.36 TB |
| Form Factor | U.2 15mm |
| Interface | PCIe 5.0 x4, NVMe |
| Weight | 165g +/- 10g |
| Lithography Type | 176L TLC 3D NAND |
| Use Conditions | Server/Enterprise |
| Performance | |
| Sequential Bandwidth - 100% Read (up to) | 14500 MB/s |
| Sequential Bandwidth - 100% Write (up to) | 9300 MB/s |
| Random Read (100% Span) | 2750000 IOPS (4K Blocks) |
| Random Write (100% Span) | 380000 IOPS (4K Blocks) |
| Power - Active | 23W |
| Power - Idle | 5W |
| Latency - Random Read (typ.) | 60μs |
| Latency - Random Write (typ.) | 7μs |
| Latency - Sequential Read (typ.) | 60μs |
| Latency - Sequential Write (typ.) | 7μs |
| Reliability | |
| Warranty Period | 5 years |
| Endurance Rating (Lifetime Writes) | 1 DWPD / 28 PBW |
| Mean Time Between Failures (MTBF) | 2.5 million hours |
| Uncorrectable Bit Error Rate (UBER) | 1 sector per 10^18 bits read |
| Vibration - Operating | 2.17 GRMS (5 - 700 Hz) Max |
| Vibration - Non-Operating | 3.13 GRMS (5 - 800 Hz) Max |
| Shock (Operating and Non-Operating) | 1,000 G (Max) at 0.5 msec |
| Operating Temperature Range | 0 - 77°C |
| Ordering Specifications | |
| Solidigm™ D7-PS1010 Series (15.36TB, 2.5in PCIe 5.0 x4, V7, TLC) Generic No Opal Single Pack | |
| Ordering Code | SB5PH27X153T001 |
| Shipping Media | 1 PACK (1PK) |
