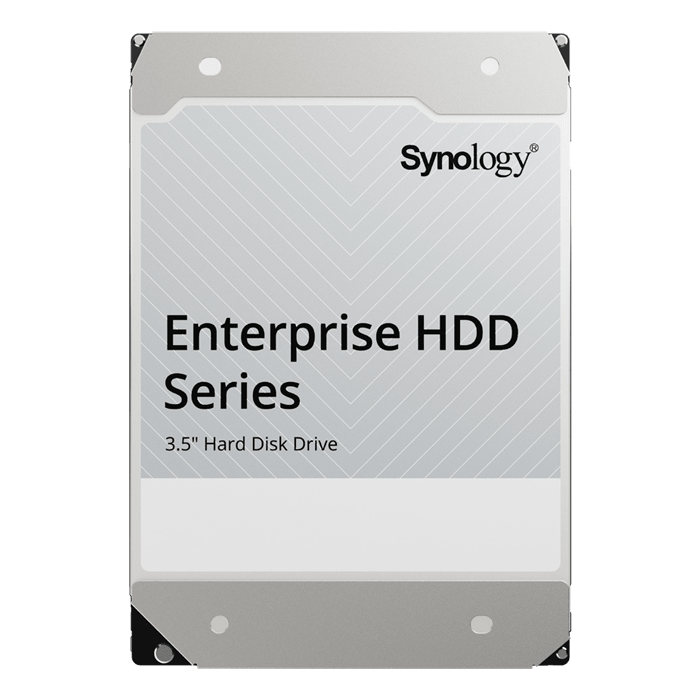

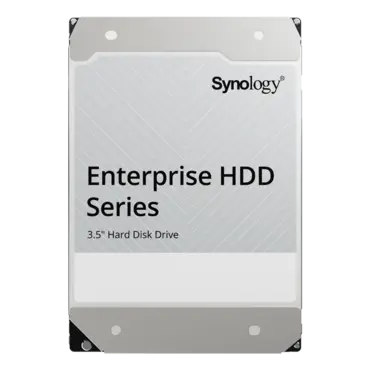

18TB HAT5310-18T, 7200 RPM, SATA 6Gb/s, 512e, 512MB cache, 3.5-Inch HDD

Quantity:
  • SKU: 15074249
  • Manufacturer: SYNOLOGY
  • MPN: HAT5310-18T
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$723.30
Quantity:
General Capacity 18 TB
Form Factor 3.5"
Interface SATA 6 Gb/s
Sector Size 512e
Performance Rotational Speed 7,200 rpm
Interface Speed 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
Buffer Size 512 MiB
Maximum Sustained Data Transfer Speed (Typ.) 268 MiB/s
Reliability Mean Time to Failure (MTTF) 2.5 million hours
Workload Rating 550 TB Transferred per Year
Warranty 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt.
Power Consumption Supply Voltage 12 V (± 10%) / 5 V (+10/-7%)
Active Idle (Typ.) 4.16 W
Random Read / Write (4KB Q1) (Typ.) 8.35 W
Notes Power consumption may differ according to configurations and platforms.
Temperature Operating 5°C to 60°C (41°F to 140°F)
Non-operating -40°C to 70°C (-40°F to 158°F)
Shock Operating 686 m/s2 {70 G} (2 ms duration)
Non-operating 2,450 m/s2 {250 G} (2 ms duration)
Vibration Operating 7.35 m/s2 {0.75 G} (5 to 300Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz)
Non-operating 29.4 m/s2 {3.0 G} (5 to 500 Hz)
Altitude Operating -305 m to 3,048 m
Non-operating -305 m to 12,192 m
Relative Humidity Operating 5% to 90% R.H. (No condensation)
Non-operating 5% to 95% R.H. (No condensation)
Others Size (Height x Width x Depth) 26.1 mm x 101.85 mm x 147 mm
Weight 720 g
Certification
  • CE
  • EAC
  • BSMI
  • RCM
  • KC
  • ICES
  • UKCA
  • TUV
  • UL
  • RoHS
