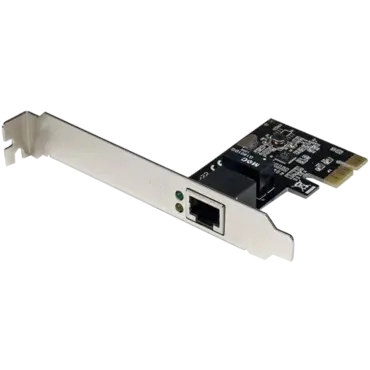

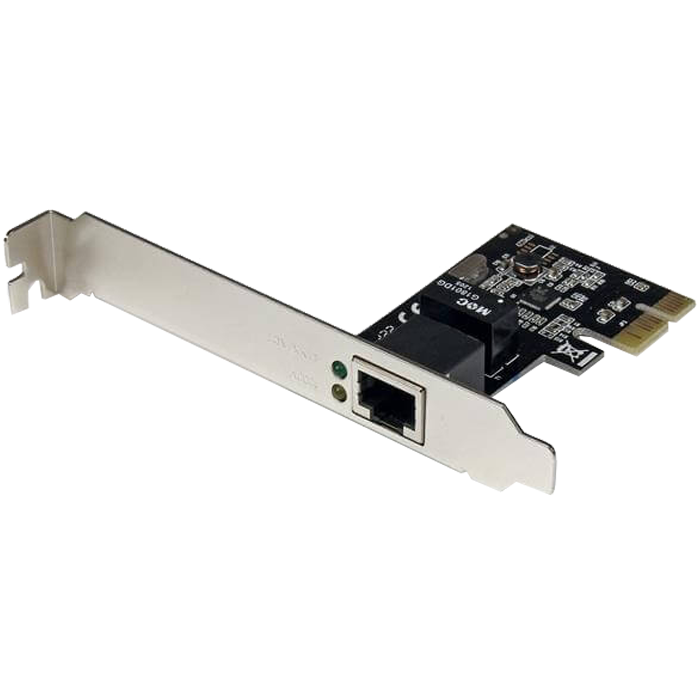

ST1000SPEX2, 1Gbps, RJ45, PCIe Network Adapter
Quantity:
- SKU: 7463152
- Manufacturer: STARTECH.COM
- MPN: ST1000SPEX2
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$23.59
ST1000SPEX2, 1Gbps, RJ45, PCIe Network Adapter
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
- A single 10/100/1000Mbps compatible RJ45 Ethernet port
- Gigabit detection and Link/Activity LED indicators
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
- Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Jumbo frame support
- Full and half duplex support
- Supports Wake-on-LAN function
- Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
- Includes a low profile/half-height installation bracket
| Warranty Information | |
| Warranty | 2 Years |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Realtek RTL8111E |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 1 |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 1000 Mbps |
| MTBF | 376,212 Hours |
| Supported Protocols | CSMA/CD |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 1 - RJ-45 Female |
| Software | |
| OS Compatibility |
Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server® 2012, 2008 R2, 2003(32/64) Mac OS® 10.x (Intel based, tested up to 10.9) Linux 2.4.x and later (Tested up to 3.5) |
| Special Notes / Requirements | |
| System and Cable Requirements | Available PCI Express expansion card slot |
| Environmental | |
| Humidity | 10% ~ 90% RH |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | 0°C to 100°C (32°F to 212°F) |
| Physical Characteristics | |
| Product Height | 0.7 in [18 mm] |
| Product Length | 2.7 in [67.9 mm] |
| Product Weight | 1.4 oz [40 g] |
| Product Width | 4.7 in [120.3 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 4.2 oz [120 g] |
