240GB DC1000B, 2200 / 290 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, SED, M.2 2280 SSD

Quantity:
  • SKU: 13208357
  • Manufacturer: KINGSTON
  • MPN: SEDC1000BM8/240G
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$77.60
Quantity:
240GB DC1000B, 2200 / 290 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, SED, M.2 2280 SSD

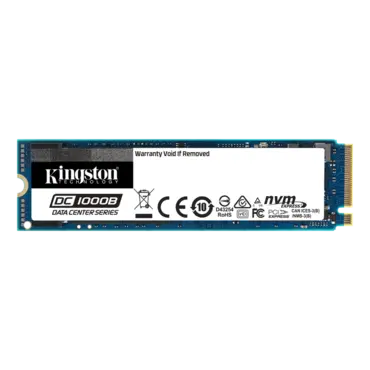

Kingston 240GB DC1000B (SEDC1000BM8/240G). Kingston’s Data Center DC1000B is a high-performance M.2 (2280) NVMe PCIe SSD using the latest Gen 3.0 x 4 PCIe interface with 64-layer 3D TLC NAND. DC1000B offers data centers a cost-effective boot drive solution with the reassurance they are purchasing an SSD designed for server use. The DC1000B is ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes on-board power loss protection (PLP).

M.2 (2280) NVMe Performance

  • Incredible speeds of up to 2.6GB/s and 200K IOPS.

Optimized Server Boot Drive

  • Enhanced for boot workloads as well as caching and logging applications.

On-board (PLP) Power Loss Protection

  • Reduce the possibility of data loss and/or corruption on ungraceful power-off.

Maximize Drive Bays

  • Move boot drives internally frees up front loading drive bays for additional data storage.
Form Factor M.2, 22mm x 80mm (2280)
Interface PCIe NVMe Gen3 x4
Capacities 240GB
NAND 3D TLC
Self-Encrypting Drive (SED) AES 256-bit Encryption
Sequential Read/Write 240GB – 2,200MBs/290MBs
Steady-State 4k Read/Write 240GB – 111,000/12,000 IOPS
Total Bytes Written (TBW) 240GB – 248TBW
Latency Read (Avg) 161µs
Latency Write (Avg) 75µs
Power Loss Protection (Power Caps) Yes
Enterprise SMART tools Reliability tracking, usage statistics, SSD life remaining, wear leveling, temperature
Endurance 240GB — (0.5 DWPD/5yrs)
Power Consumption 240GB: Idle: 1.82W Average Read: 1.71W Average Write: 3.16W Max Read: 1.81W Max Write: 3.56W
Storage temperature -40°C ~ 85°C
Operating temperature 0°C ~ 70°C
Dimensions 80mm x 22mm x 3.8mm
Weight 240GB – 8g
Vibration operating 2.17G Peak (7–800Hz)
Vibration non-operating 20G Peak (10–2000Hz)
MTBF 2 million hours
Warranty/support Limited 5-year warranty with free technical support
