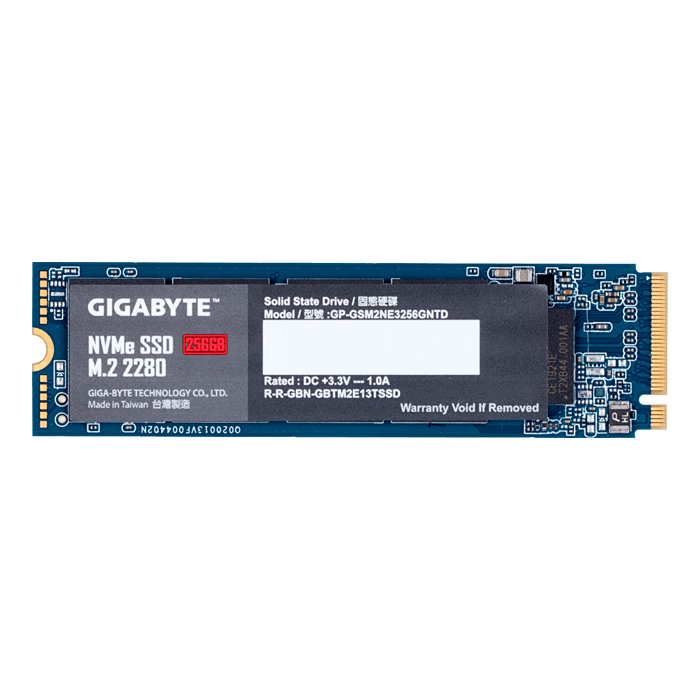

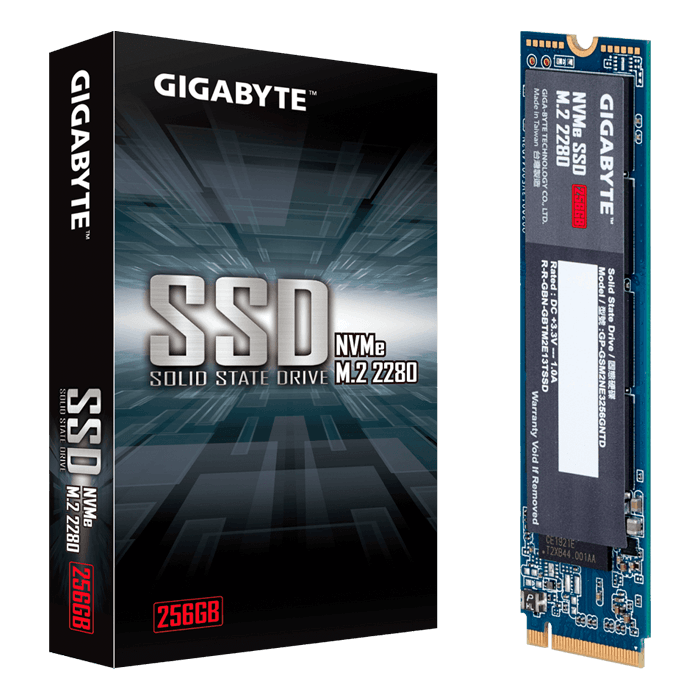

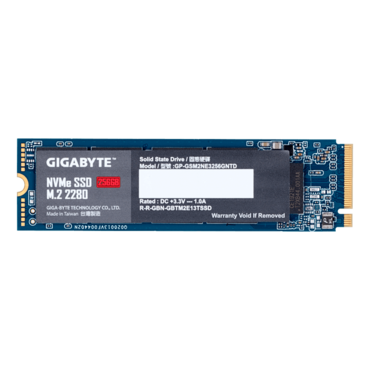

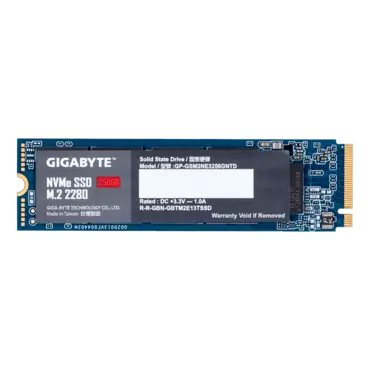

256GB GP-GSM2NE3256GNTD, 1700 / 1100 MB/s, 3D NAND, PCIe NVMe 3.0 x4, M.2 2280 SSD

Quantity:
  • SKU: 13278971
  • Manufacturer: GIGABYTE
  • MPN: GP-GSM2NE3256GNTD
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$27.56
Quantity:
  • Form Factor: M.2 2280
  • Interface: PCI-Express 3.0 x4, NVMe 1.3
  • Total Capacity: 256GB*
  • Warranty: Limited 5-year or 300TBW
  • Sequential Read Speed : up to 1700 MB/s**
  • Sequential Write speed : up to 1100 MB/s**
  • HMB (Host Memory Buffer) supported
  • TRIM & S.M.A.R.T supported
Interface PCI-Express 3.0 x4, NVMe 1.3
Form Factor M.2 2280
Total Capacity 256GB
Warranty Limited 5-year or 300TBW
NAND NAND Flash
External DDR Cache N/A
Sequential Read speed Up to 1700 MB/s
Sequential Write speed Up to 1100 MB/s
Random Read IOPS Up to 180k
Random Write IOPS Up to 250k
Dimension 80 x 22 x 2.3 mm
Mean time between failure (MTBF) 1.5M hours
Power Consumption (Active) Avg. read : 2.6W ; Write : 2.4W
Power Consumption (Idle) 1.9mw
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C
Note * Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
* Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
* Speeds based on internal testing. Actual performance may vary.
* TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
* 1GB = 1 billion bytes. Actual useable capacity may vary.
* 5-years or 300TBW, whichever comes first.
