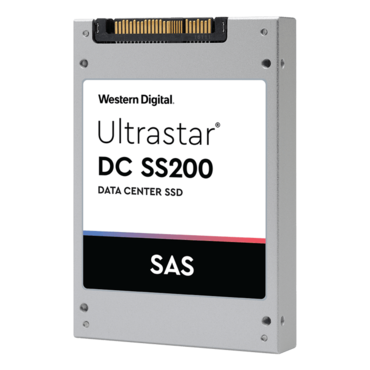

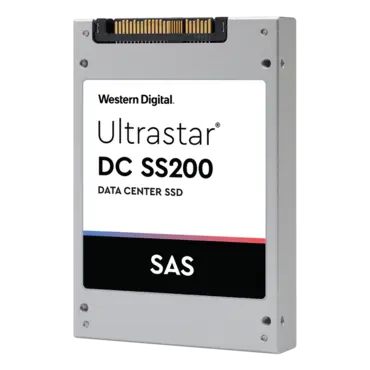

- Enterprise-grade 12Gb/s SAS SSD; backward compatible with 6Gb/s SAS
- Capacity points: 3.2TB in 2.5-inch drive form factor
- Maximum read throughput up to 1,800MB/s
- Up to 250,000 4KiB IOPS in random reads
- Up to 1,000MB/s sequential writes
- Endurance of 3 random drive writes per day (DW/D) for 5 years
- Instant Secure Erase (ISE)
- 5-year limited warranty
Configuration | 3 DW/D |
Base Model Ultrastar | DC SS200 |
Interface | SAS 12Gb/s |
Form Factor | 2.5-inch |
Flash Memory Technology | 15nm MLC NAND |
Capacity | 3.2TB |
Endurance (Drive writes per day) | 3 |
Performance | |
Sequential Read (max MB/s, 128KiB) | 1,800 |
Sequential Write (max MB/s, 128KiB) | 1,000 |
Random Read (max IOPS, 4KiB) | 250,000 |
Random Write (max IOPS, 4KiB) | 86,000 |
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB) |
154,000 |
Latency (μs) | 100 |
Reliability | |
Unrecoverable Bit Error Rate (UBER) | < 1 in 1017 |
MTBF5 | 2.5M hours |
Annual Failure Rate (AFR) | 0.35% |
Limited Warranty | 5 years |
Data Retention 3-month at | 40°C |
Power | |
Requirement (DC +/- 5%) | 5V & 12V |
Operating (W, typical) | 9 or 11 (configurable) |
Idle (W) | 3.8 to 4.3 |
Physical | |
z-height (mm) | 15 |
Dimensions (width x depth, mm) | 69.85 x 100.45 |
Weight (g, max) | 200 |
Environmental | |
Operating Temperature (case) | 0°C to 70°C |
Non-operating Temperature | -40°C to 85°C |
