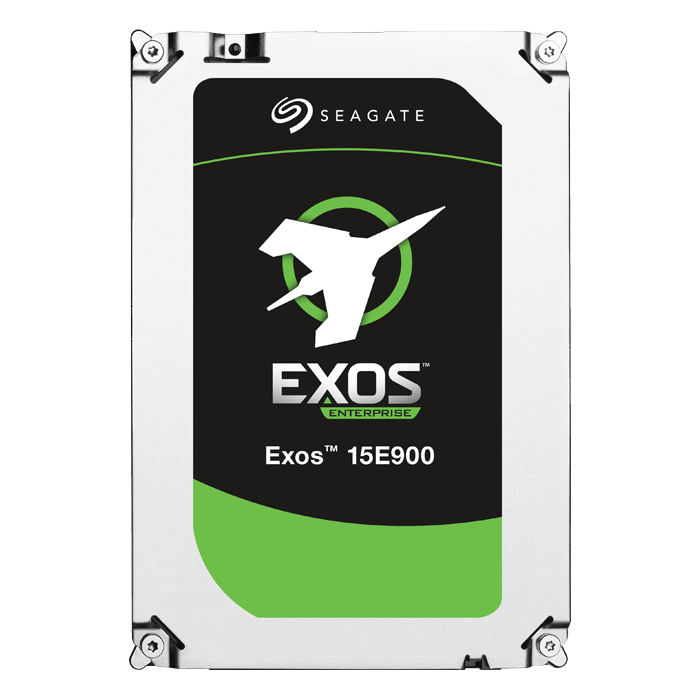

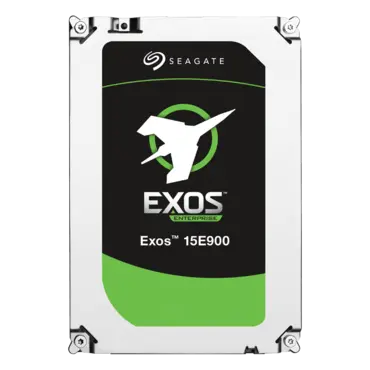

300GB Exos 15E900 ST300MP0106, 15000 RPM, SAS 12Gb/s, 512n/4Kn, 256MB cache, 2.5" HDD

Quantity:
  • SKU: 10914915
  • Manufacturer: SEAGATE
  • MPN: ST300MP0106
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$192.80
Quantity:
Specifications 4K Native / 512 Emulation
Capacity 300GB
Standard Model ST300MP0106
Performance
Average Latency (ms) 2
Sustained Transfer Rate (Outer to Inner Diameter, MB/s) 315 to 215
Mixed Workload Performance (at 5ms) 900
Max. Instantaneous Transfer Rate (SAS dual port) MB/s 2,400
Cache, Multi-segmented (MB) 256
Interface 12 Gb/s SAS
Intelligent NAND Endurance Management Yes
Features
Fast-Format Models Yes
TurboBoost® Enhanced Read Caching Yes
Advanced Write Caching Yes
Low Halogen Yes
PowerChoiceIdle Power Technology Yes
Hot Plug Support Yes
Organic Solderability Preservative Yes
Digital Sensors for Humidity Yes
Configuration/Reliability
Discs/Heads 1/2
Non-recoverable Read Errors per Bits Read, Max 1 per 10E16
Annualised Failure Rate (AFR) 0.44%
Limited Warranty (years) 5
Power Management
Typical Op (A) +5V/+12V 6.9
Average Idling Power (W) 4.7
Average Operating Power (W) 6.9 W
Environmental
Ambient Temperature, Operating (°C) 5°C – 55°C
Ambient Temperature, Non-operating (C°) -40°C – 70°C
Temperature Change Rate/Hr, Max (°C) 20
Relative Humidity, Non-condensing (max gradient 20%/hour) 5% – 95%
Shock, Max. Operating: 11ms (Gs) 40
Shock, Max. Non-operating: 2 ms (Gs) 400
Vibration, Operating, <400 Hz (Gs) 0.5
Vibration, Non-operating: <500 Hz (Gs) 2.4
Physical
Height (mm/in, max) 15 mm/0.591 in
Width (mm/in, max) 69.85 mm/2.75 in
Depth (mm/in, max) 100.45 mm/3.955 in
Weight (g/lb) 225 g/0.496 lb
