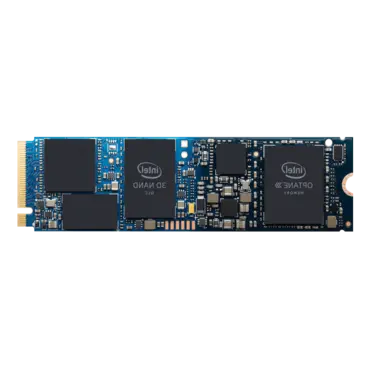

32GB Optane™ Memory H10 + 512GB QLC 3D NAND SSD, 2280, 2300 / 1300 MB/s, PCIe 3.0 x4 NVMe, M.2

Quantity:
  • SKU: 13576690
  • Manufacturer: INTEL
  • MPN: HBRPEKNX0202A08
  • Availability: LOW STOCK
Starting At
$109.61
Quantity:
Essentials
Product Collection Intel® Optane™ Memory H10 with Solid State Storage
Capacity 512 GB
Status Launched
Launch Date Q2'19
Use Conditions PC/Client/Tablet
Performance Specifications
Sequential Bandwidth - 100% Read (up to) 2300 MB/s
Sequential Bandwidth - 100% Write (up to) 1300 MB/s
Random Read (8GB Span) (up to) 320000 IOPS
Random Write (8GB Span) (up to) 250000 IOPS
Latency - Read 7 µs
Latency - Write 18 µs
Power - Active 5.8W
Power - Idle L1.2 : <13mW
Reliability
Vibration - Operating 2.17 GRMS (5-700 Hz) Max
Vibration - Non-Operating 3.13 GRMS (5-800 Hz) Max
Shock (Operating and Non-Operating) 1000 G / 0.5 ms and 1500 G / 0.5 ms
Operating Temperature Range 0°C to 70°C
Operating Temperature (Maximum) 70 °C
Operating Temperature (Minimum) 0 °C
Endurance Rating (Lifetime Writes) 150 TBW
Mean Time Between Failures (MTBF) 1.6 Million Hours
Uncorrectable Bit Error Rate (UBER) < 1 sector per 10^15 bits read
Supplemental Information
Description Introducing the new Intel® Optane™ Memory H10 with Solid State Storage which combines two breakthrough technologies, Low-latency Intel® Optane™ technology and high-density Intel® QLC 3D NAND in a single M.2 2280 form factor.
Package Specifications
Weight Less than 10 grams
Form Factor M.2 22 x 80mm
Interface PCIe 3.0 x4, NVMe
Advanced Technologies
Enhanced Power Loss Data Protection Yes
Temperature Monitoring and Logging Yes
End-to-End Data Protection Yes
Intel® Rapid Start Technology Yes
