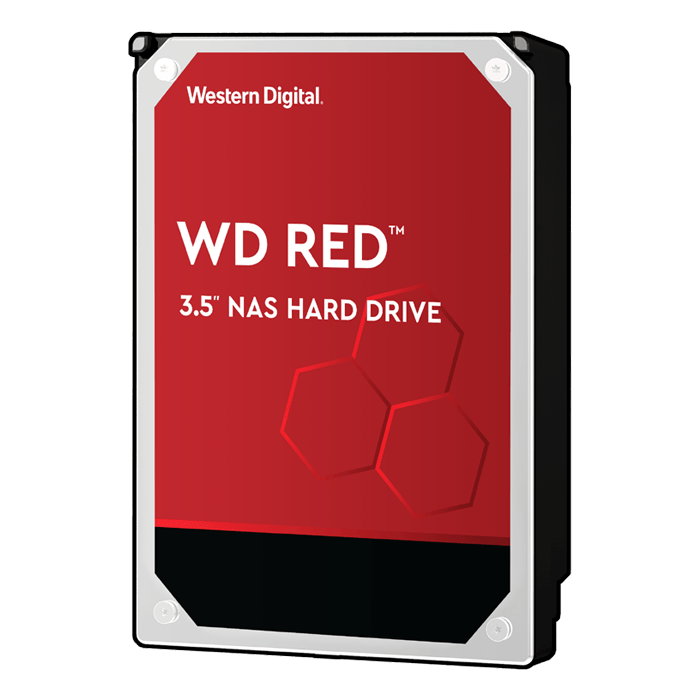

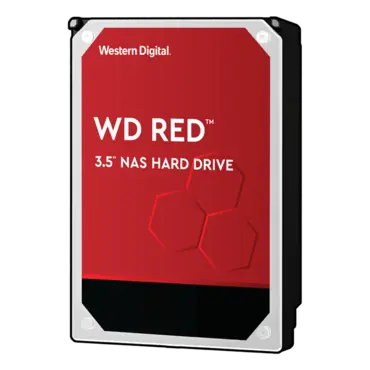

3TB Red WD30EFAX, 5400 RPM, SATA 6Gb/s, 256MB cache, 3.5-Inch HDD

SKU: 13423512

Manufacturer: WESTERN DIGITAL

MPN: WD30EFAX

Availability: Available


Price: $94.19
or as low as $3/month
Quantity:
Specifications
Model number WD30EFAX
Interface SATA 6 Gb/s
Formatted capacity 3TB
Form factor 3.5-inch
Advanced Format (AF) Yes
Native command queuing Yes
RoHS compliant Yes
Performance
Interface Transfer Rate; (read
speed) up to
180 MB/s
Cache (MB) 256
Performance Class 5400 RPM Class
Reliability/Data Integrity
Load/unload cycles 600,000
Non-recoverable read errors per  bits read <10 in 1014
MTBF (hours) 1,000,000
Workload Rate (TB/yr) 180
Limited warranty (years) 3
Power Management
12VDC-/+10% (A, peak) 1,75
Average power requirements (W)
Read/Write
Idle
Standby/Sleep

4.8
3.1
0.4
Environmental Specifications
Temperature (°C)
Operating
Non-operating

0 to 65
-40 to 70
Shock  (Gs)
Operating (2 ms, read/write)
Operating (2 ms, read)
Non-operating (2 ms)

30
65
250
Acoustics (dBA)
Idle
Seek  (average)

23
27
Physical Dimensions
Height (in./mm, max) 1.028/26.1
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb/kg, ± 10%) 1.32/0.60
