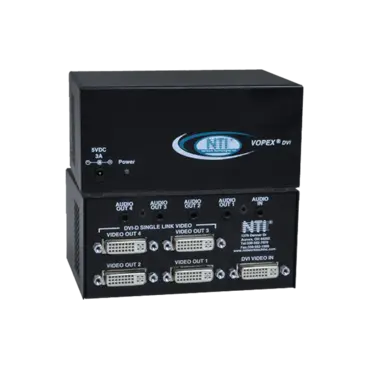

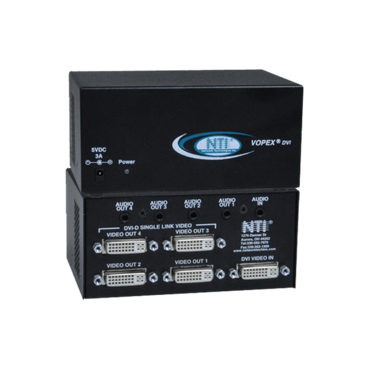

4-Port DVI Video Splitter with Audio
Connects 1 computer DVI source to 4 DVI compatible displays or projectors
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200
Passes HDMI audio and video through DVI-I port
Video Input |
- Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI output.
- Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
- Female DVI-I connector.
- Signal type: single link digital DVI
- HDCP compliant
|
Video output |
- Female DVI-I connectors.
- Signal type: single link digital DVI.
- Resolutions: HDTV resolutions to 1080p and computer resolutions to 1920x1200 at 60 Hz.
- HDCP compliant
|
Optional Audio |
- 3.5 mm stereo audio jacks.
- Frequency response: 20 Hz to 20 kHz, +/-1 dB.
- Total Harmonic Distortion (THD): 0.012%.
- Stereo Crosstalk: -82 dB.
- Input impedance: 10k Ohms.
- CD quality audio output.
- Requires powered speakers.
|
Power |
- 4- and 8-port splitters: 110 or 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
- 16-port splitter: 110 or 220 VAC at 50 or 60 Hz (Country-specific power supply cable is attached.)
|
NTI Part # |
WxDxH (in) |
VOPEX-DVIS-4 |
5.14x3.47x1.68 |
VOPEX-DVIS-8 |
8.33x3.47x1.68 |
VOPEX-DVIS-16 |
17.47x7.22x1.68 |
VOPEX-DVISA-4 |
5.14x3.47x2.44 |
VOPEX-DVISA-8 |
8.32x3.47x2.44 |
Environmental |
- Operating temperature: 32 to 122°F (0 to 50°C).
- Storage temperature: -20 to 140°F (-30 to 60°C).
- Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
|
Cables |
- One 3-foot single link DVI-I (DVI-IS-3-MM) male-to-male cable included.
- Use DVI-HD-xx-MM to connect an HDMI source or display (not included).
|
Regulatory Approvals |
|
Warranty |
|
Compatible NTI Products |
- Combine NTI's extenders, switches, splitters and cables for complex applications
|
