480GB DC1000B, 3200 / 565 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, SED, M.2 2280 SSD
Quantity:
- SKU: 13208358
- Manufacturer: KINGSTON
- MPN: SEDC1000BM8/480G
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$95.45
480GB DC1000B, 3200 / 565 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, SED, M.2 2280 SSD

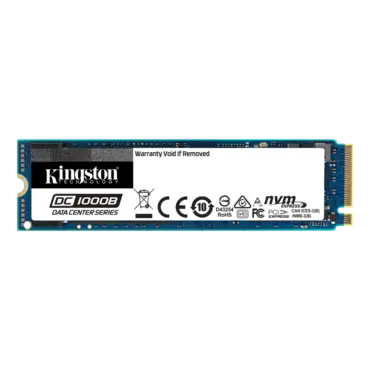

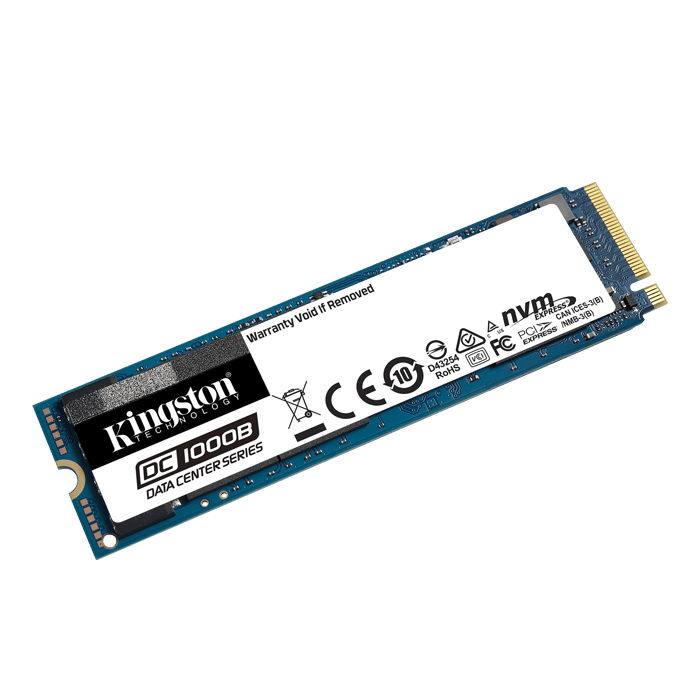

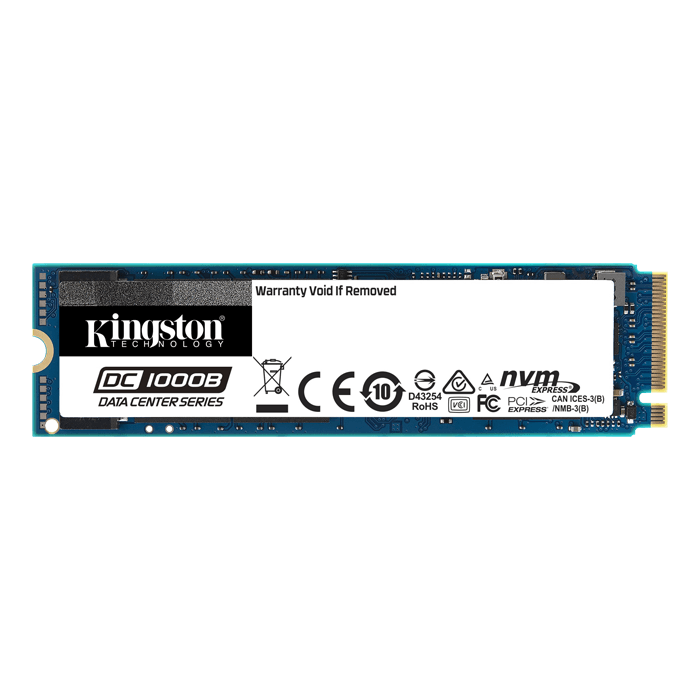

Kingston 480GB DC1000B (SEDC1000BM8/480G). Kingston’s Data Center DC1000B is a high-performance M.2 (2280) NVMe PCIe SSD using the latest Gen 3.0 x 4 PCIe interface with 64-layer 3D TLC NAND. DC1000B offers data centers a cost-effective boot drive solution with the reassurance they are purchasing an SSD designed for server use. The DC1000B is ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes on-board power loss protection (PLP).
M.2 (2280) NVMe Performance
- Incredible speeds of up to 2.6GB/s and 200K IOPS.
Optimized Server Boot Drive
- Enhanced for boot workloads as well as caching and logging applications.
On-board (PLP) Power Loss Protection
- Reduce the possibility of data loss and/or corruption on ungraceful power-off.
Maximize Drive Bays
- Move boot drives internally frees up front loading drive bays for additional data storage.
| Form Factor | M.2, 22mm x 80mm (2280) |
| Interface | PCIe NVMe Gen3 x4 |
| Capacities | 480GB |
| NAND | 3D TLC |
| Self-Encrypting Drive (SED) | AES 256-bit Encryption |
| Sequential Read/Write | 480GB – 3,200MBs/565MBs |
| Steady-State 4k Read/Write | 480GB – 205,000/20,000 IOPS |
| Total Bytes Written (TBW) | 480GB – 475TBW |
| Latency Read (Avg) | 161µs |
| Latency Write (Avg) | 75µs |
| Power Loss Protection (Power Caps) | Yes |
| Enterprise SMART tools | Reliability tracking, usage statistics, SSD life remaining, wear leveling, temperature |
| Endurance | 480GB — (0.5 DWPD/5yrs) |
| Power Consumption | 480GB: Idle: 1.90W Average Read: 1.74W Average Write: 4.88W Max Read: 1.81W Max Write: 5.47W |
| Storage temperature | -40°C ~ 85°C |
| Operating temperature | 0°C ~ 70°C |
| Dimensions | 80mm x 22mm x 3.8mm |
| Weight | 480GB – 9g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G Peak (10–2000Hz) |
| MTBF | 2 million hours |
| Warranty/support | Limited 5-year warranty with free technical support |
