Keep Your Computer, Improve Its Performance

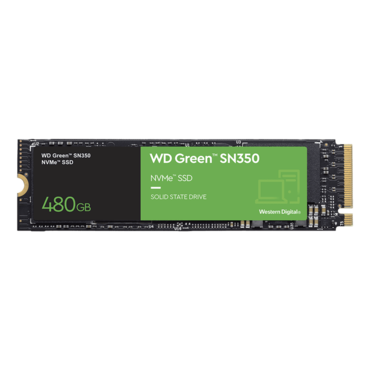

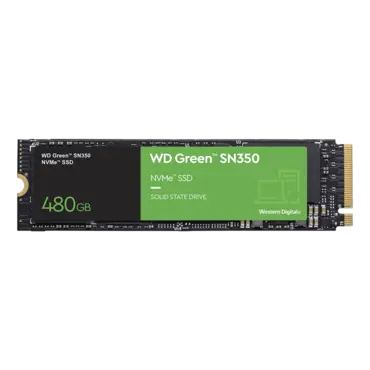

The WD Green™ SN350 NVMe™ (WDS480G2G0C) SSD can revitalize your old computer for daily use. Whether you’re in class, shopping, chatting or surfing, this drive can work up to four times faster than SATA drives. Because they have no moving parts, SSDs offer a shock-re- sistant design to help protect your important data against accidental bumps and drops. The slim M.2 2280 form factor allows for a quick and easy upgrade for any computer with an NVMe slot. Plus, with the downloadable Western Digital® SSD Dashboard you can also monitor the health of your drive for added peace of mind.
|WD Green SSD M.2 2280||PCIe Gen3 8Gb/s, up to 4 Lanes|
|Sequential Read (MB/s) up to||2,400|
|Sequential Write (MB/s) up to||1,650|
|Random Read 4K (IOPS) up to||250K|
|Random Write 4K (IOPS) up to||170K|
|Avg. Active Power4||60mW|
|PS3 (Low Power)||25mW|
|Maximum Operating Power||3.5W|
|MTTF5||Up to 1.0M hours|
|Operating Temperatures6||32ºF to 158ºF (0ºC to 70ºC)|
|Non-operating Temperatures7||-40ºF to 185ºF (-40ºC to 85ºC)|
|Operating Vibration||5 gRMS, 10-2000 Hz, 3 axes|
|Non-operating Vibration||4.9 gRMS, 7-800 Hz, 3 axes|
|Shock||1,500G @0.5 ms half sine|
BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC,
KCC, Morocco, RCM, TUV, UL, VCCI
|Limited Warranty8||3 years|
|Size: M.2 2280||80mm x 22.0mm x 2.38mm|
|Weight: M.2 2280||7.5g ± 1g|
Specifications are subject to change without notice
1 Backward compatible with PCIe Gen3 x1, PCIe Gen2 x4, PCIe Gen2 x2, and PCIe Gen2 x1.
2 Test Conditions: Performance is based on the CrystalDiskMark 7.0.0f benchmark using a 1000MB LBA range ASUS Z170A desktop with Intel® i7-6700K 4.0Ghz, 8GB 2133MHz DDR4. Windows 10 Pro 64-bit version 1903 using
Microsoft StorNVMe driver, secondary drive. Performance may vary based on host device. 1 MB = 1,000,000 bytes.
IOPS = input/output operations per second.
³TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity. 4 Measured using MobileMark™ 2014 on ASUS B9440UA WITH I5-7200U, 8GB RAM. Windows 10 Pro 64-bit version 1709 using Microsoft StorNVMe driver, Primary drive.
5 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing (Telcordia SR-332,
GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drive’s reliability and does not constitute a warranty.
6 Operational temperature is measured by thermal sensors in NAND package. The SSD box package is rated up to
7 Non-operational storage temperature does not guarantee data retention.
8 3 years or Max Endurance (TBW) limit, whichever occurs first. See support.WesternDigital.com for regional specific warranty details.
9 1TB=1, 000,000,000,000 bytes. 1GB=1,000,000,000 bytes. Actual user storage less
