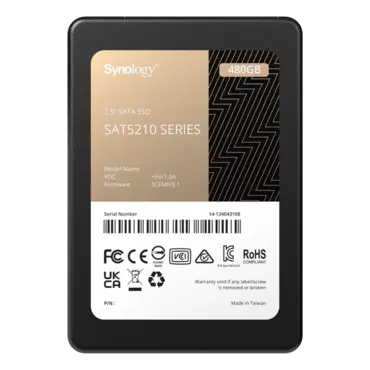

480GB SAT5210 7mm, 530 / 500 MB/s, 3D NAND, SATA 6Gb/s, 2.5" SSD

  • SKU: 14707399
  • Manufacturer: SYNOLOGY
  • MPN: SAT5210-480G
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
General Capacity 480 GB
Form Factor 2.5" 7mm
Interface SATA 6 Gb/s
Performance Sustained Sequential read (128 KB, QD32) 530 MB/s
Sustained Sequential write (128 KB, QD32) 500 MB/s
Sustained Random Read (4KB, QD32) 96,000 IOPS
Sustained Random Write (4KB, QD32) 55,000 IOPS
Notes All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.
Endurance and Reliability Terabytes Written (TBW)* 1,097 TB
Mean Time Between Failures (MTBF) 1.5 million hours
Uncorrectable Bit Error Rate (UBER) < 1 sector per 1017 bits read
Power Loss Protection
Warranty* 5 Years
  • Based on the JESD219A enterprise workload.
  • 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first
Power Consumption Supply Voltage 5V (± 5%)
Active Read (Typ.) 2.4 W
Active Write (Typ.) 2.8 W
Idle 1.3 W
Notes Power consumption may differ according to configurations and platforms.
Temperature Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Others Size (Height x Width x Depth) 7 mm x 69.85 mm x 100 mm
  • FCC
  • CE
  • EAC
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS
  • UKCA
