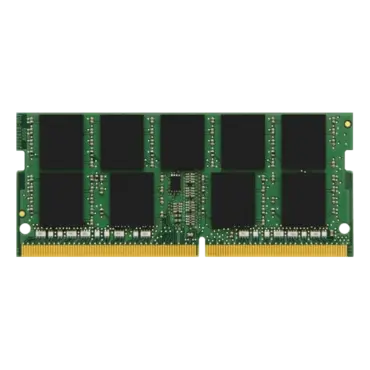

4GB ValueRAM DDR4 3200MHz, CL22, SO-DIMM Memory

SKU: 13051786

Manufacturer: KINGSTON

MPN: KVR32S22S6/4

Availability: Available


Price: $20.70
or as low as $1/month
Quantity:
  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 8 internal banks; 2 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free
Model
Brand KINGSTON
Series ValueRAM
Model KVR32S22S6/4
Details
Capacity 4GB
Type 260-Pin DDR4 SO-DIMM
Speed DDR4 3200 (PC4-25600)
CAS Latency 22
Voltage 1.2V
ECC No
Buffered/Registered Unbuffered
Heat Spreader No
