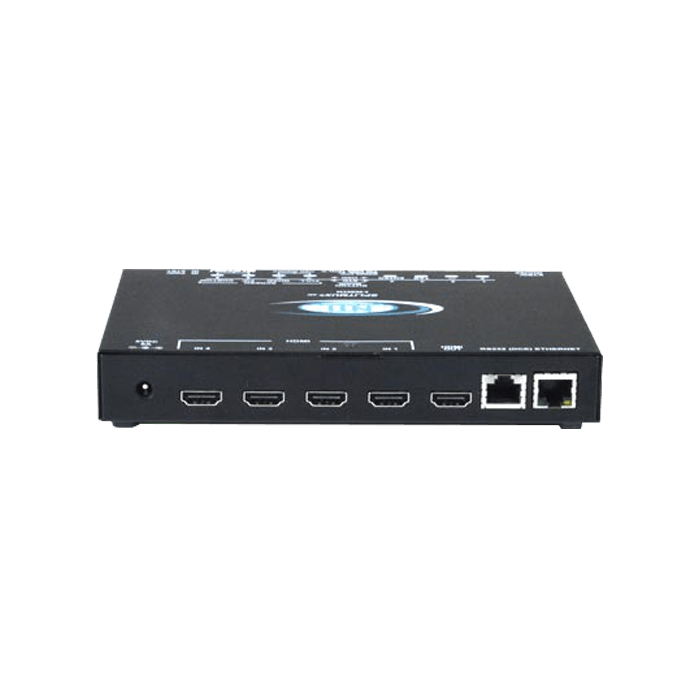

4K HDMI Quad Screen Splitter/Multiviewer, 1RU Dual Side-by-Side Rackmount

SKU: 12659081

Manufacturer: NTI

MPN: splitmux-4k-4rt-2r

Availability: Unknown


Price: $3,153.99
or as low as $102/month
Quantity:
4K HDMI Quad Screen Multiviewer
  • Simultaneously display real-time HDMI Ultra-HD 4Kx2K video from four different sources on a single monitor
  • Quad, Picture in Picture, Full Screen, and Custom display modes
  • Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants
  • Specifications
  • Video Input
    • Four female HDMI connectors.
    • Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
    • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • Supported video input resolutions:
      • 2K Cinema (2048x1080 @ 60Hz)
      • HDTV resolutions to 1080p
      • Computer resolutions to 1920x1200.
    • Supports HDCP 1.2
    Video Output
    • One female HDMI connector for display.
      • Compatible with 21:9 UltraWide monitors.
    • Supported video output resolutions:
      • Quad and Full mode
        • Ultra-HD 4Kx2K resolutions (3840x2160 @ 60Hz, 4096x2160 @ 60Hz)
        • 2K Cinema (2048x1080 @ 60Hz)
        • HDTV resolutions to 1080p
        • Computer resolutions to 2560x1600
      • PiP and Custom mode
        • 2K Cinema (2048x1080 @ 60Hz)
        • HDTV resolutions to 1080p
        • Computer resolutions to 1920x1200.
    • HDMI-embedded audio switching (four-channel stereo mixing).
    • Supports HDCP 2.2
    • Chroma sampling: 4:4:4 RGB.
    • Latency:
      • 50mS at 60Hz
      • 60mS at 50Hz
      • 100mS at 30Hz
      • 120mS at 25Hz
      • 125mS at 24Hz
    Protocols
    • HTTP, HTTPS
    • TCP/IP, DHCP, UDP, ARP
    • IPV4
    Power
    • 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
    • Power consumption: 20W
    Dimensions
    • SPLITMUX-4K-4RT (desktop)
      • WxDxH (in): 7.35x4.98x1.09 (187x126x28 mm)
    • SPLITMUX-4K-4RT-R (1RU rackmount) and SPLITMUX-4K-4RT-2R (1RU dual side-by-side rackmount)
      • WxDxH (in):
        • Without rackmount kit: 7.35x4.98x1.75 (187x126x45 mm)
        • With rackmount kit: 19x4.98x1.75 (483x126x45 mm) (excludes cable tray)
      • Can be mounted so that the front panel buttons are facing the front or back of the rack.
      • Includes cable management tray.
        • Adds 3.37" to the depth.
    Environmental
    • Operating temperature: 32°F to 113°F (0°C to 45°C).
    • Storage temperature: -22°F to 140°F (-30°C to 60°C).
    • Operating and storage relative humidity: 17 to 90% non-condensing RH.
    Regulatory Approval
    • CE, RoHS.
    • TAA compliant
    Warranty
    • Two years
    Compatible NTI Products
    • Combine NTI's extenders, switches, splitters and cables for complex applications.
      • 4K HDMI Extender (ST-C64K-300)
        • SPLITMUX-4K-4RT and ST-C64K-300 will work together at resolutions up to 3840x2160 @ 30Hz.
