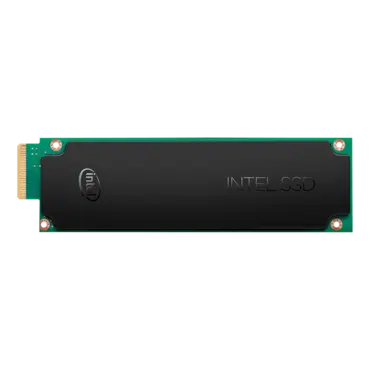

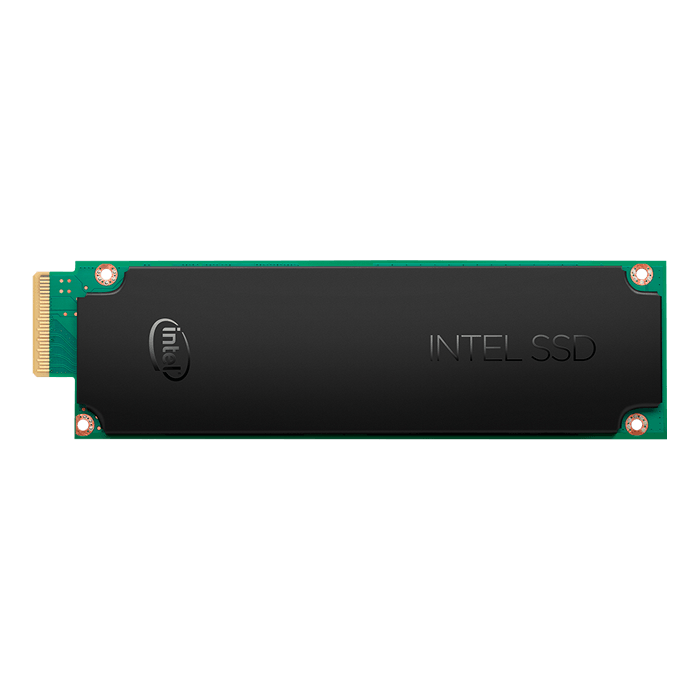

4TB DC-P4511 5.9mm, 2800 / 2400 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, SED, EDSFF E1.S SSD

  • SKU: 13147040
  • Manufacturer: INTEL
  • MPN: SSDPEYKX040T801
Starting At
Product Collection Intel® SSD DC P4511 Series
Code Name Products formerly Cliffdale Refresh
Capacity 4TB
Status Launched
Launch Date Q4'19
Lithography Type 64-Layer TLC 3D NAND
Use Conditions Server/Enterprise
Performance Specifications
Sequential Bandwidth - 100% Read (up to) 2800 MB/s
Sequential Bandwidth - 100% Write (up to) 2400 MB/s
Random Read (100% Span) 610200 IOPS
Random Write (100% Span) 75000 IOPS
Latency - Read 12 µs
Latency - Write 14 µs
Power - Active 12.5W
Power - Idle <5W
Vibration - Operating 2.17 GRMS (5-700Hz)
Vibration - Non-Operating 3.13 GRMS (5-800Hz)
Shock (Operating and Non-Operating) 1000G (0.5ms)
Operating Temperature Range 0°C to 70°C
Operating Temperature (Maximum) 70 °C
Operating Temperature (Minimum) 0 °C
Endurance Rating (Lifetime Writes) Up to 3.33 PBW (JEDEC Workload)
Mean Time Between Failures (MTBF) 2 million hours
Uncorrectable Bit Error Rate (UBER) 1 sector per 10^17 bits read
Warranty Period 5 yrs
Package Specifications
Weight 290g
Form Factor E1.S 5.9mm
Interface PCIe 3.1 x4, NVMe
Advanced Technologies
Enhanced Power Loss Data Protection Yes
Hardware Encryption AES 256 bit
High Endurance Technology (HET) Yes
Temperature Monitoring and Logging Yes
End-to-End Data Protection Yes
Intel® Smart Response Technology No
Intel® Rapid Start Technology No
Intel® Remote Secure Erase No
