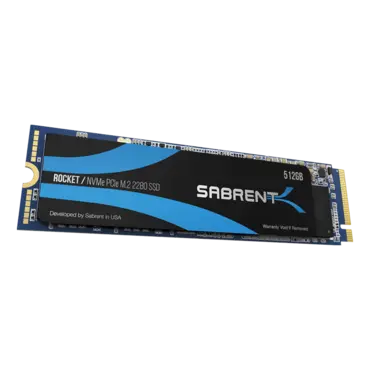

512GB Rocket, 3400 / 2000 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, M.2 2280 SSD

  • SKU: 13261426
  • Manufacturer: SABRENT
  • MPN: SB-ROCKET-512
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
512GB Rocket, 3400 / 2000 MB/s, 3D TLC NAND, PCIe NVMe 3.1 x4, M.2 2280 SSD

The Sabrent 512GB ROCKET NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive (SB-ROCKET-512) delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly known as M.2.

Based on 3D TLC NAND Flash memory, its performance speeds can reach up to 3400MB/s (read) and 2000 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.

  • M.2 PCIe Gen3 x 4 Interface.
  • PCIe 3.1 Compliant / NVMe 1.3 Compliant.
  • Power Management Support for APST / ASPM / L1.2.
  • Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
  • Advanced Wear Leveling, Bad Block Management, and Over-Provision.
Brand Sabrent
Model SB-ROCKET-512
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Form Factor M.2 2280
Capacity 512GB
Memory Components 3D TLC NAND
Interface PCI-Express 3.1 x4
Controller Phison
Max Sequential Read Up to 3400 MBps
Max Sequential Write Up to 2000 MBps
4KB Random Read Up to 350,000 IOPS
4KB Random Write Up to 450,000 IOPS
MTBF 1,800,000 hours
HeatSink No
Operating Temperature 0°C ~ +70°C
Storage Temperature -40°C ~ +85°C
Max Shock Resistance 1500G
Dimensions & Weight
Height 3.30mm
Width 21.84mm
Depth 78.74mm
Weight 5.66g
Additional Information
Date First Available November 18, 2019
