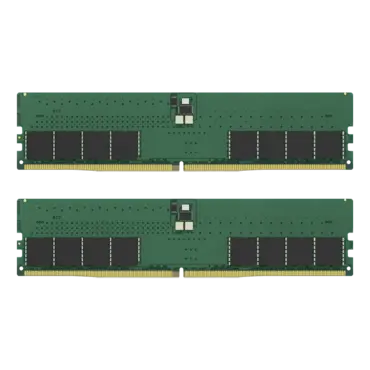

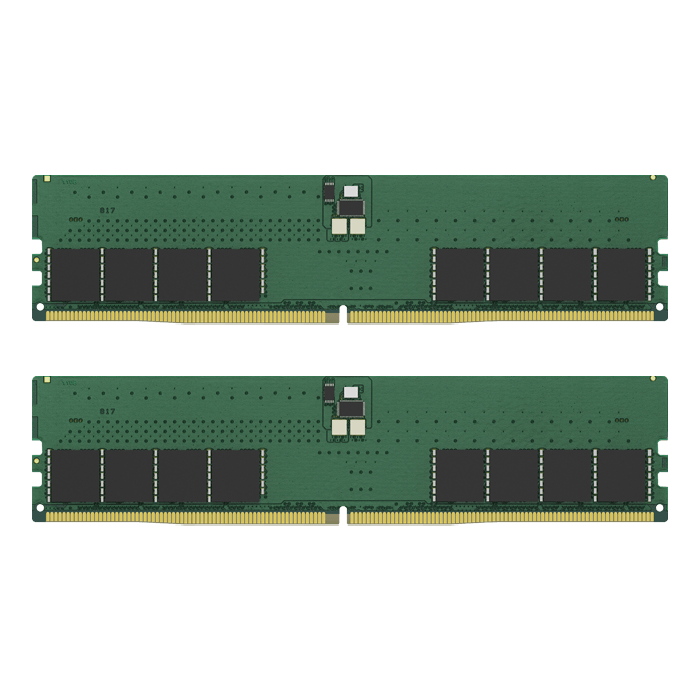

64GB (2 x 32GB) KVR56U46BD8K2-64 DDR5 5600MT/s, CL46, DIMM Memory

Quantity:
  • SKU: 15689309
  • Manufacturer: KINGSTON
  • MPN: KVR56U46BD8K2-64
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$180.55
Quantity:
64GB (2 x 32GB) KVR56U46BD8K2-64 DDR5 5600MT/s, CL46, DIMM Memory

This document describes ValueRAM's KVR56U46BD8K2-64 is a kit of two 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. Total kit capacity is 64GB. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Model KVR56U46BD8K2-64
Capacity 64GB (2 x 32GB)
Form Factor DIMM
Type DDR5
Speed 5600MT/s
CAS Latency 46
Timing 46-45-45
ECC No
Buffered/Registered Unbuffered
Heat Spreader No
