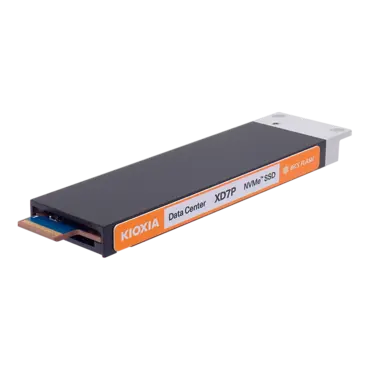

7.68TB XD7P 9.5mm, 7200 / 4800 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, SED, TCG Opal SSC, EDSFF E1.S SSD
- SKU: 16037057
- Manufacturer: Kioxia
- MPN: KXDZDRJJ7T68
- Availability: CONTACT US
Price
$1,215.98
| SED Model Number | KXDZDRJJ7T68 |
| Capacity | 7.68 TB |
| Basic Specifications | |
| Form Factor | E1.S 9.5 mm |
| lnterface | PCIe®5.0, NVMe™ 2.0 |
| Maximum Interface Speed | 64 GT/s (PCIe®Gen4 x4) |
| Flash Memory Type | BiCS FLASH™ TLC |
| Performance (Up to) | |
| Sustained 128 KiB Sequential Read | 7,200 MB/s |
| Sustained 128 KiB Sequential Write | 4,800 MB/s |
| Sustained 4 KiB Random Read | 1,550K IOPS |
| Sustained 4 KiB Random Write | 200K IOPS |
| Power Requirements | |
| Supply Voltage | 12 V ± 10 % |
| Power Consumption (Active) | 20 W typ. |
| Power Consumption (Ready) | 5 W typ. |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 1 |
| Dimensions | |
| Thickness | 9.5 mm ± 0.35 mm |
| Width | 33.75 mm ± 0.25 mm |
| Length | 118.75 mm ± 0.55 mm |
| Weight | 75 g Max |
| Environmental | |
| Temperature (Operating) | 0 °C to 75 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 12 m/s2{ 1.24 Grms } ( 2 to 500 Hz ) |
| Shock (Operating) | 6.864 km/s2{ 700 G } ( 0.5 ms ) |
