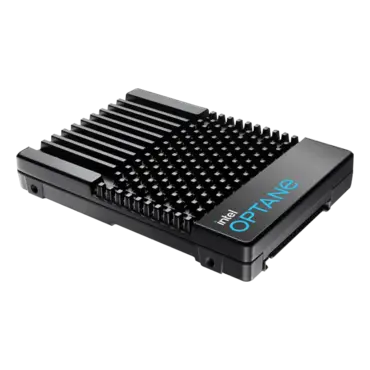

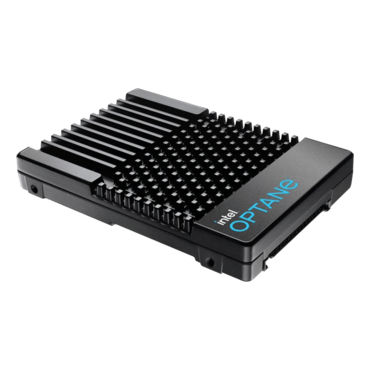

800GB DC P5800X 15mm, 7200 / 6100 MB/s, 3D XPoint, PCIe NVMe 4.0 x4, U.2 2.5" SSD
Quantity:
- SKU: 13816130
- Manufacturer: INTEL
- MPN: SSDPF21Q800GB01
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,761.98
| Product Collection | Intel® Optane™ SSD DC P5800X Series |
| Code Name | Products formerly Alder Stream |
| Status | Launched |
| Launch Date | Q4'20 |
| Performance Specifications | |
| Sequential Bandwidth - 100% Read (up to) | 7200 MB/s |
| Sequential Bandwidth - 100% Write (up to) | 6100 MB/s |
| Random Read (100% Span) | 1500000 IOPS |
| Random Write (100% Span) | 1350000 IOPS |
| Latency - Read | 5 µs |
| Latency - Write | 5 µs |
| Power - Active | 18W |
| Power - Idle | 4.2W |
| Reliability | |
| Vibration - Operating | 2.17 Grms, (5-700 Hz), random |
| Vibration - Non-Operating | 3.13 Grms (5-800 Hz), random |
| Shock (Operating and Non-Operating) | 1,000 G, 0.5 ms, half sine |
| Operating Temperature Range | 0°C to 70°C |
| Operating Temperature (Maximum) | 70 °C |
| Operating Temperature (Minimum) | 0 °C |
| Endurance Rating (Lifetime Writes) | 100 DWPD |
| Mean Time Between Failures (MTBF) | 2 Million Hours |
| Uncorrectable Bit Error Rate (UBER) | < 1 sector per 10^17 bits read |
| Warranty Period | 5 yrs |
| Package Specifications | |
| Components | Intel(R) Optane(TM) Memory Media |
| Weight | 140g |
| Form Factor | 2.5" 15mm |
| Interface | PCIe 4.0 x4, NVMe |
| Advanced Technologies | |
| Enhanced Power Loss Data Protection | Yes |
| Hardware Encryption | AES 256 bit |
| High Endurance Technology (HET) | Yes |
| Temperature Monitoring and Logging | Yes |
| End-to-End Data Protection | Yes |
